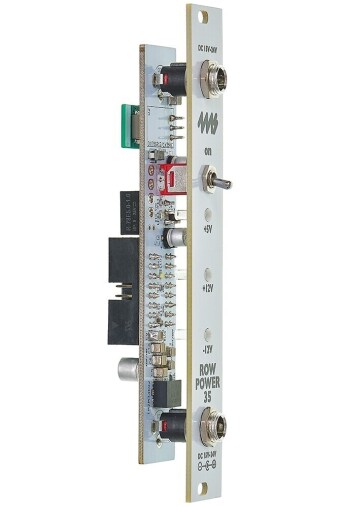

4MS Row Power 35 (white)

4ms Row Power is a clean, regulated, and protected power solution for eurorack systems. The module provides 35W of power, suited for any typical eurorack row (84HP to 168HP). Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick. Multiple Row Power modules can be daisy-chained and be powered by a single power brick.

Features:

• Two power jacks for daisy-chaining multiple Row Powers: a common laptop-style power brick could power 3-5 rows (typical)
• On/off switch cuts power without interrupting the daisy-chain
• Row Power 35 provides more than enough power for a 84HP or 104HP row of modules
• Ultra-clean: Each rail is separately regulated with high-grade components
• Runs cool: Row power is efficient so it won't heat up your system
• CV/Gate headers for expansion
• PCB supports blade tabs for power entry, to be used in custom installations (e.g. if the 4HP panel is not used)
• Power output:

  • +12V @ 1.4A
  • -12V @ 1.25A
  • +5V @ 1.0A

The recommended power supply is the 4ms Power Brick 90W.
