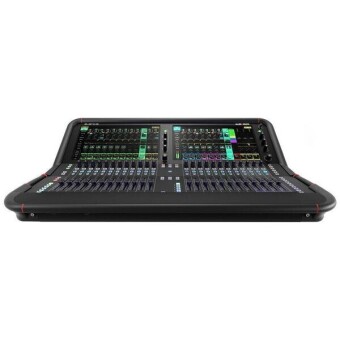

96kHz 64v Channel / 42 Buses Digital Mixer
- XCVI FPGA core with very low latency (0.7ms)
- Freely configurable mix bus architecture
- The user interface combines physical controls with touchscreen controls for the fastest and most intuitive workflow
- 2 RackExtra FX slots with separate stereo returns
- 16 DCAs
- Two 15.6" Full HD displays with capacitive touchscreens with gesture control
- AMM (Automatic Mic Mixer) for up to 64 channels across 1, 2 or 4 zones
- Fully assignable layout
- 144 Fader strips (24 faders, 6 levels) with optional master section
- SLink port for connection to remote I/O extensions and the ME Personal Mixing System
- 12 Analogue XLR inputs
- 12 Analogue XLR outputs
- 1 Stereo AES input
- 2 AES outputs
- 2 I/O ports for 128x128 at 96kHz each - for optional cards incl. Dante, MADI and gigaACE
- User-configurable rotary control
- 24 Assignable sofkeys
- Comprehensive metering with multi-point peak detection
- USB stereo recording and playback
- BNC Word Clock
- Very robust all-metal frame
- Dimensions (W x D x H): 917 x 627 x 269 mm
- Weight: 26 kg
