32-CHANNEL AUDIO INTERFACE WITH DANTE, HDX AND THUNDERBOLT 3
The Galaxy 32 Synergy Core —
sets a new performance standard in its class by expanding the capabilities of the Orion 32 line with Dante audio networking and Synergy Core processing. Designed for professional recording studios and high-profile production and broadcasting facilities, the interface offers 32 channels of analog I/O with mastering grade AD/DA conversion and clocking as well as industry standard HDX and Thunderbolt for easy integration with your setup.

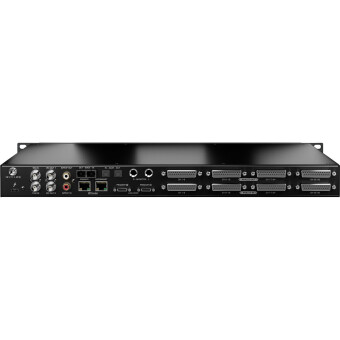

CONNECTIVITY
• 32 analog output channels over 4 × DC-coupled D-Sub 25 connectors (TASCAM standard);
• Dante™ audio over IP with primary port for audio transfer over long distances and a mirrored secondary port for redundancy;
• 2 × HDX ports (24-bit, 192kHz): up to 64 channels I/O for Pro Tools HD / HDX integration;
• Thunderbolt™ 3 port with custom macOS & Windows drivers for low latency performance in native DAW applications;
• Digital I/O: 64 channels of optical MADI, 8 channels of ADAT, and 2 channels over S/PDIF;
• Clocking I/O: 1 × word clock/loop sync input, 2 × word clock/loop sync outputs, 1 × 10М input;
• 1 × Dedicated stereo monitor output over ¼ TRS.
CLOCKING & CONVERSION
REAL-TIME EFFECTS PROCESSING
• Synergy Core proprietary onboard platform powered by 6 × DSP & 2 × FPGA chips for real-time effects processing with imperceptible latency;
WORKFLOW-ENHANCING FEATURES
• Virtual patch-bay allowing execution of complicated input/output signal routing with a simple drag and drop;
• All digital ports can be used simultaneously for easy integration with multiple systems and different setups;
• 4 x onboard low-latency stereo mixers with 32 input channels each, with adjustable levels, panning and reverb settings – suitable for monitoring or summing;
• Customizable presets complete with signal routing, level adjustments, mixer settings and effects;
• Direct monitoring with effects, processed in real-time with imperceptible latency;

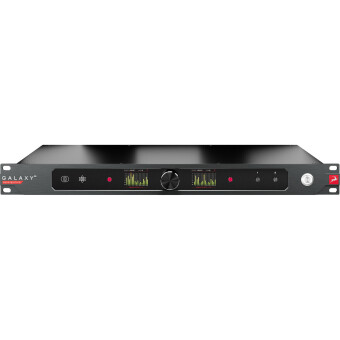

• Two 1.8″ IPS display screens for independent signal metering;
• Option to work without being connected to a computer (standalone operation);
• Wireless control of software features from a separate computer connected to the same network.

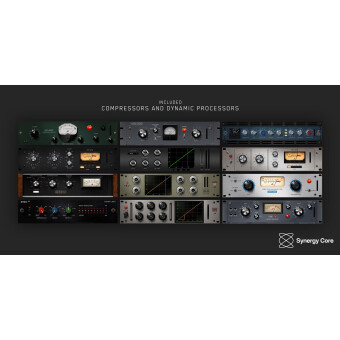

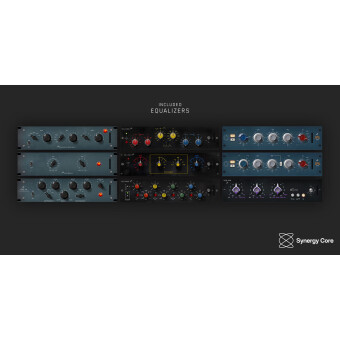

37 INCLUDED SYNERGY CORE EFFECTS
VEQ-55A (3-Band EQ / HPF / LPF)
VEQ-4K BLACK (4-Band EQ / HPF / LPF)
VEQ-4K BROWN (4-Band EQ / HPF / LPF)
VEQ-4K ORANGE (4-Band EQ / HPF / LPF)
VEQ-4K PINK (4-Band EQ / HPF / LPF)
VEQ-HA32C (4-Band EQ / HPF / LPF)
VEQ-STU 900 (4-Band EQ / HPF / LPF)
NEU-W492 (4-Band EQ)
VMEQ-5 (3-Band Tube Mid-Range EQ )
BAE-1084 (3-Band EQ / HPF / LPF)
VEQ-STU 089 (3-Band EQ / HPF / LPF)
BAE-1023 (3-Band EQ / HPF)
VEQ-1A (2-Band Tube EQ)
VEQ-HLF (Tube 2-Band HPF / LPF)
VEQ-STU 169 (3-Band EQ / HPF)
NEU-PEV (3-Band EQ)
NEU-W495 (3-Band EQ)
Clear Q (Parametric EQ)
VCA160 (VCA Compressor / Limiter)
X903 (VCA Compressor / Limiter)
ALT-436C (Vari-Mu Tube Compressor Amplifier)
Tube 176 (Vari-Mu Tube Compressor / Limiter)
Stay-Levin (Vari-Mu Tube Compressor)
SMT-100A (Tube Leveling Amplifier / Limiter)
FET-A78 (FET Compress Stereo Peak Limiter)
FET-A76 (FET Compressor / Limiting Amplifier)
BAE 10DCF (Compressor / Limiter)
PowerEX (Expander)
PowerFFC (Feed-Forward Compressor)
PowerGate (Noise Gate)
BA-31 (Germanium Mic Preamp)
Gyraf Gyratec IX (Dual Tube Mic Preamp with HPF)
Marble White AutoWah (Auto-Wah Pedal)
Vari-Speed Tremolo (Tremolo)
Auraverb (Reverb)
Master De-Esser (De-Esser)
A-Tuner (Guitar Tuner)
IN-THE-BOX CONTENT
● Power adapter
● Getting Started guide
Note: The device does not come with a Thunderbolt cable included
DIMENSIONS
Device:
W: 48,3 cm (19 in); D: 27,9 cm (11 in); H: 4,4 cm (1,73 in); 3,4 kg (7,5 lbs)
Box:
W: 63,6 cm (25 in); D: 34 cm (13,4 in); H: 11 cm (4,3 in); 5 kg (11 lbs)
