Deluxe Highlights:

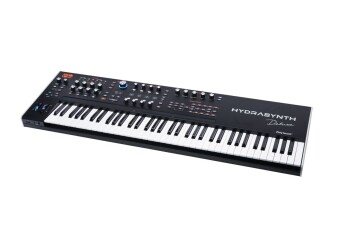

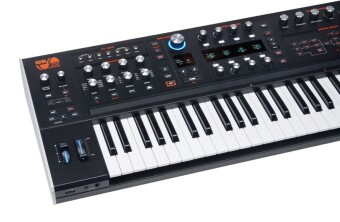

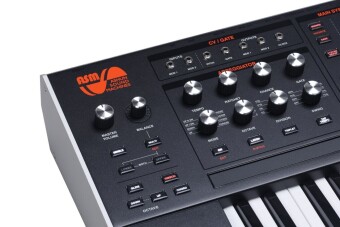

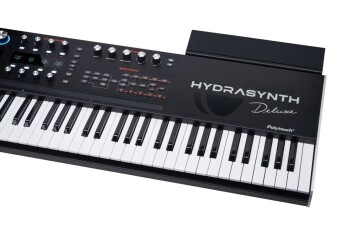

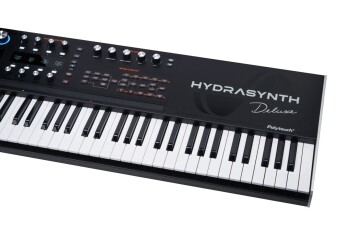

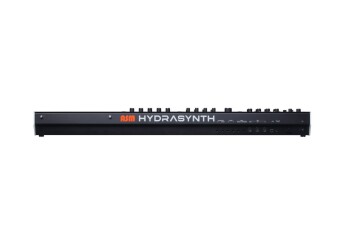

ASM Hydrasynth Deluxe Wave Morphing Synthesizer Features
16-voice polyphonic digital wave morphing synthesizer
Single/Multi Dual/Keysplit voicing options
POLYTOUCH™ Polyphonic Aftertouch, Note on/off velocity keyboard with 73 full-size keys
MPE (MIDI Polyphonic Expression) compatibility
Multi function ribbon controller (Modulation, Pitch bend, Theremin mode)
Microtuning support via MIDI Tuning Standard files
1024 Single program locations with Category Search
640 Multi program locations with 1280 embedded program locations
Dual stereo audio outputs
Deluxe:
Tech Specs
Type: Polyphonic Wave Morphing Synthesizer
Sound Engine Type(s): Wavescan
Analog/Digital: Digital
Number of Keys: 73
Type of Keys: ASM POLYTOUCH™ Polyphonic Aftertouch Keyboard, On/Off Velocity-sensitive
Other Controllers: Ribbon Controller, Pitch Bend, Mod Wheel
Polyphony: 16 voices (Full/Layer/Split)
Number of Presets: 1024 Single Programs, 1280 Programs in Multi (Upper/Lower)
Number of Multis: 640 Programs
Oscillators: 3 x Wavescan oscillators (219 Waveforms), 4 x Mutator wave shapers (8 Types), Noise (7 Types)
Mutators: 8 Types (FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, Hard Sync, PhazDiff)
Noise: 7 Types (White, Pink, Brown, Red, Blue, Violet, Grey)
LFO: 5 per Voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock
Envelopes: 5 per voice, Tempo syncable, Variable trigger sources
Filter Types: 1 Multimode Filter (16 types) and 1 Variable LP-BP/Notch-HP filter, series or parallel routing
Filters: Filter 1 (LP Ldr12, LP Ldr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel), Filter 2 (LP-BP-HP, LP-Notch-HP)
Effects: 9 Insert Effects, 5 Delays, 4 Reverbs
Effects Types: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb
Arpeggiator: 8 types (Up, Down, Up&Down, Up/Down, Order, Random, Chord, Phrase)
Other: Mod Matrix (32 slots), Macro Controllers (8), Favorites (32), Randomizer (Patch and Module), MPE Compatibility, Warm Mode, Microtuning
Audio Outputs: 4 x 1/4" Balanced (L/Mono Upper, R Upper, L Lower, R Lower)
Headphones: 1 x 1/4", 1 x 1/8", Separate volume control
USB: 1 x Type B
MIDI I/O: In/Out/Thru
Pedal Inputs: 2 x 1/4" (expression, sustain)
Other I/O: 2 x 1/8" Inputs (Mod 1, Mod2), 5 x 1/8" Outputs (CV, Gate, Mod1, Mod2, Clock)
Power Supply: 12V DC switchable power supply
Additional: Utility shelf
Height: 3.62" / 9.2cm
Width: 44.45" / 112.9cm
Depth: 13.62" / 34.6cm
Weight: 29.33lbs / 13.3kg
MPN: HSLX
