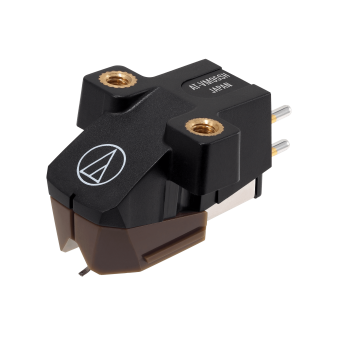

Audio-Technica AT-VM95SH

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli. +2 Features VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus Aluminum cantilever Durable low-resonance polymer housing Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required Compatible with any AT-VMN95 replacement stylus Specifications

Cartridge & Stylus
Frequency Response	20-25,000 Hz
Channel Separation	23 (dB at 1 kHz)
Vertical Tracking Angle	23°
Vertical Tracking Force	1.8-2.2 g (2.0 g standard)
Stylus Construction	Nude square shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	3.3 k ohms (1 kHz)
DC Resistance	485 ohms
Coil Inductance	550 mH (1 kHz)
Output Voltage	3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance	1.5 dB (1 kHz)
Stylus Shape	2.7 x 0.26 mil Shibata
Cantilever	Aluminum pipe
Static Compliance	20 x 10 – 6 cm / dyne
Dynamic Compliance	10 x 10 – 6 cm / dyne (100 Hz)
Mounting	Half-inch
Cartridge Weight	6.1g
Dimensions	17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D

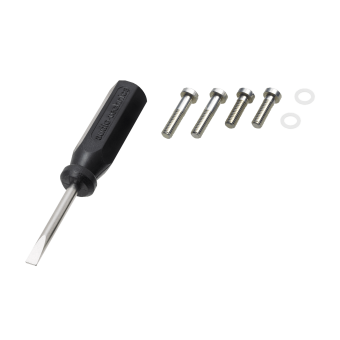

Accessories Included	Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Model	AT-VM95SH
Mounting Feature	Half-inch mount
Recommended Load Capacitance	100 to 200 pF
Replacement Stylus	AT-VMN95SH
Stylus Size	2.7 x 0.26mil
Type	VM Stereo Dual Magnet
Weight	6.1 g (0.22 oz)
Wire Used for Coil	T.P. Copper
