Audio-Technica AT4022

The low-profile AT4022 omnidirectional condenser recording mic is outstanding for piano, acoustic guitar, and other acoustic instruments. With a flat, extended frequency response and wide dynamic range ideal for critical studio and live applications, the AT4022 handles high SPLs with ease. The microphone’s omnidirectional polar pattern preserves the “sound” of the recording location, delivers flat response and freedom from proximity effect. Its low-mass diaphragm improves transient response and reduces handling/mechanical noise transfer. +2 Features Outstanding performance and rugged construction, ideal for critical studio & live applications High SPL handling and wide dynamic range Flat, extended frequency response Switchable 80 Hz hi-pass filter and 10 dB pad Omnidirectional polar pattern provides maximum ambient pickup Low self noise perfectly suited for digital recording equipment Exceptional reproduction of low frequency sounds Low-mass element for superb transient response Specifications

Microphones
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Omnidirectional
Frequency Response	20-20,000 Hz
Low Frequency Roll Off	80 Hz, 18 dB/octave
Open Circuit Sensitivity	-34 dB (19.9 mV) re 1V at 1 Pa
Maximum Input Sound Level	146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
Noise	13 dB SPL
Dynamic Range	133 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	81 dB, 1 kHz at 1 Pa
Phantom Power Requirements	48V DC, 3.0 mA typical
Switches	Flat, roll-off; 10 dB pad
Weight	124 g (4.4 oz)
Dimensions	144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter

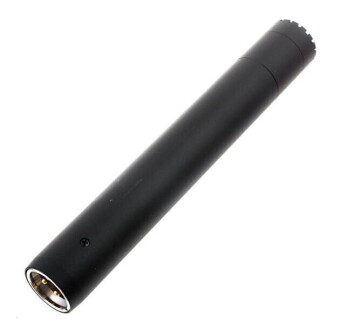

Output Connector	Integral 3-pin XLRM-type

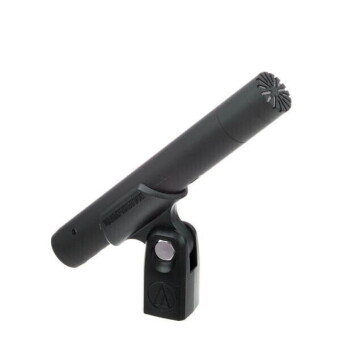

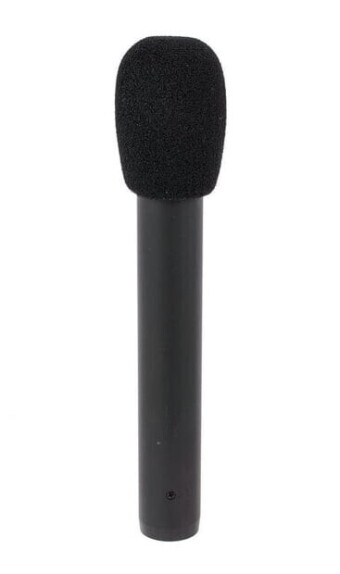

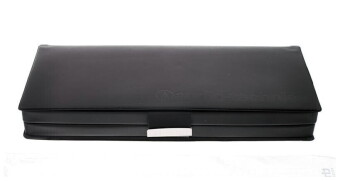

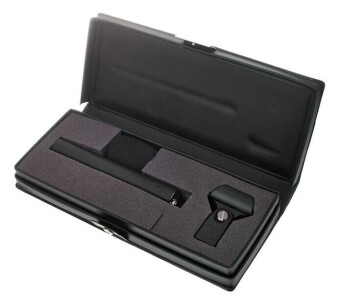

Accessories Included	AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
Audio-Technica Case Style	S1
