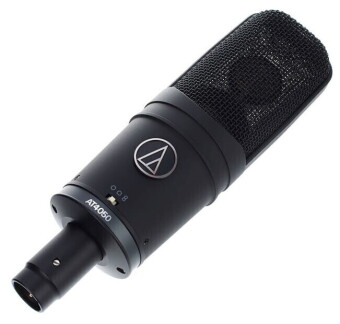

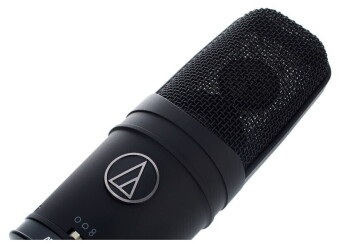

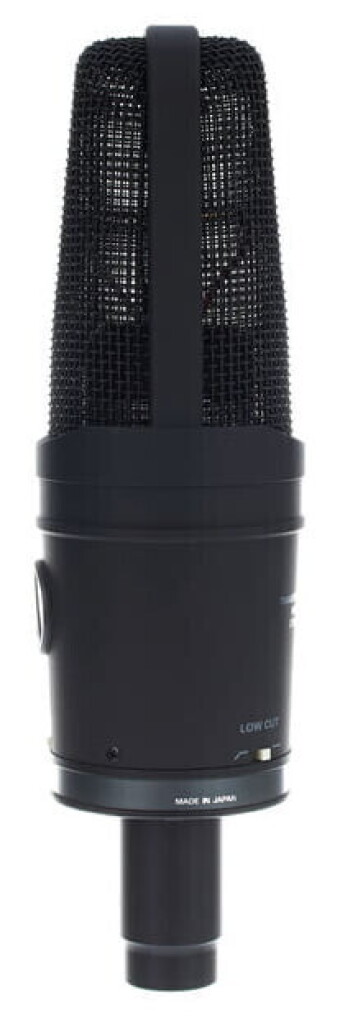

Meet the studio condenser that captures every nuance. With three switchable polar patterns, the large-diaphragm Audio-Technica AT4050 exhibits a remarkable combination of qualities: high-SPL capability with transparent and airy uppers/mids complemented by rich low-end qualities. Its dual large diaphragms are gold-vaporized and aged for consistent, outstanding performance. A precision-machined, nickel-plated brass acoustic element baffle provides rock-solid element stability and exceptional sensitivity.
Ideal for studio use and live sound productions with vocals, piano, strings, drum overheads, guitar amps, and more.
Audio-Technica’s AT4050. For performance that legends are made of. +3 Features Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use Three switchable polar patterns: omni, cardioid, figure-of-eight Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards Switchable 80 Hz hi-pass filter and 10 dB pad Custom shock mount provides superior isolation Specifications
Ideal for studio use and live sound productions with vocals, piano, strings, drum overheads, guitar amps, and more.
Audio-Technica’s AT4050. For performance that legends are made of. +3 Features Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use Three switchable polar patterns: omni, cardioid, figure-of-eight Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards Switchable 80 Hz hi-pass filter and 10 dB pad Custom shock mount provides superior isolation Specifications
| Microphones | |
|---|---|
| Element | Externally-polarized (DC bias) condenser |
| Polar Pattern | Cardioid, Omnidirectional, Figure-of-eight |
| Frequency Response | 20-18,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | -36 dB (15.8 mV), re 1V at 1 Pa |
| Maximum Input Sound Level | 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) |
| Noise | 17 dB |
| Dynamic Range | 132 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 77 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 4.2 mA typical |

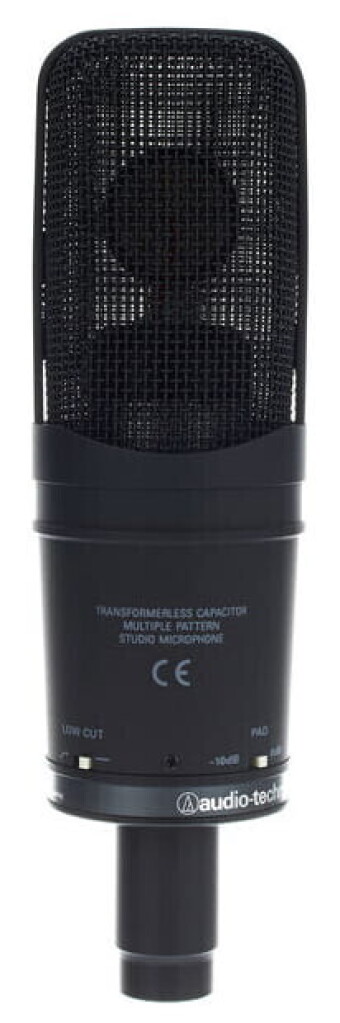

| Switches | Polar selection; Flat, roll-off; 10 dB pad (nominal) |
| Weight | 18.0 oz (510 g) |
| Dimensions | 7.40" (188.0 mm) long, 2.10" (53.4 mm) maximum body diameter |

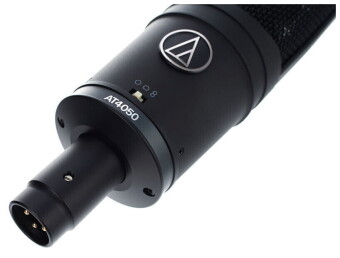

| Output Connectors | Integral 3-pin XLRM-type |

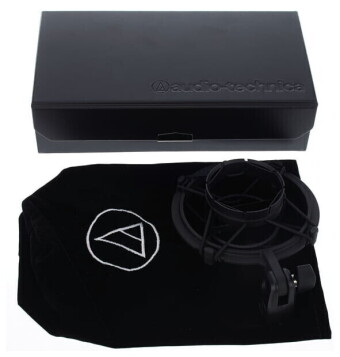

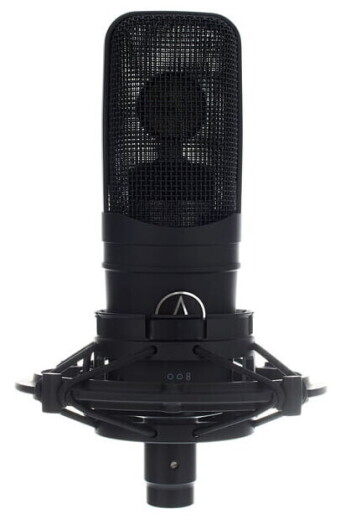

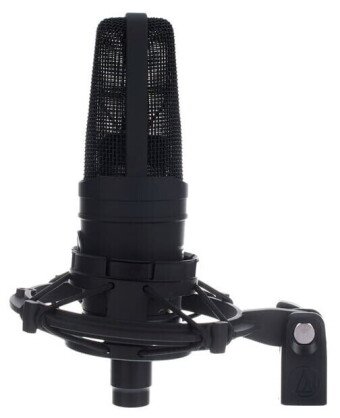

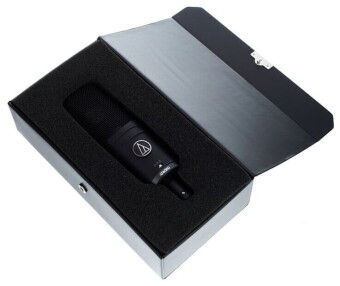

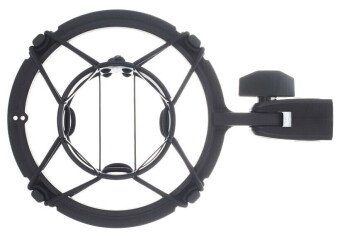

| Accessories Included | AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
| Audio-Technica Case Style | R1 |
