Audio-Technica AT4050ST

132 000 предложить свою цену
Код товара: 44727
Гарантия: 12 месяцев
Проверка информации со складов...
Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion. +4 Features Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement Independent cardioid and figure-of-eight condenser elements Switch selection of Mid-Side mode and two internally matrixed stereo modes Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections Integral 80 Hz high-pass filter switch and 10 dB pad switch State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards Custom shock mount provides superior isolation Certified by the METAlliance (Music Engineering and Technology Alliance) Specifications
Element Externally-polarized (DC bias) condenser

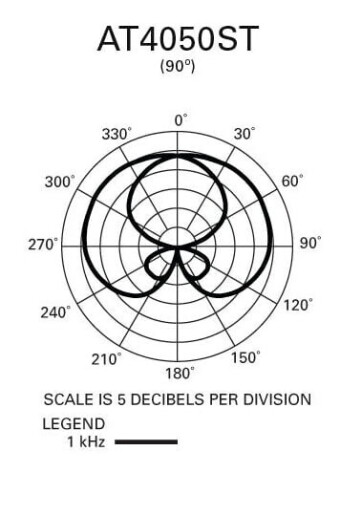

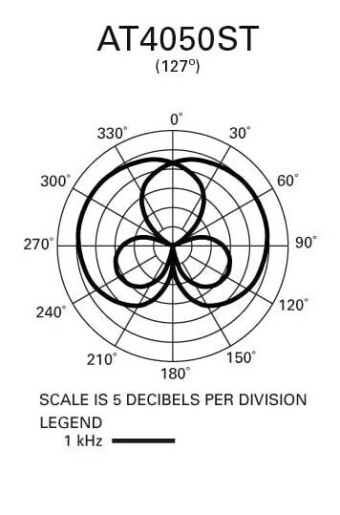

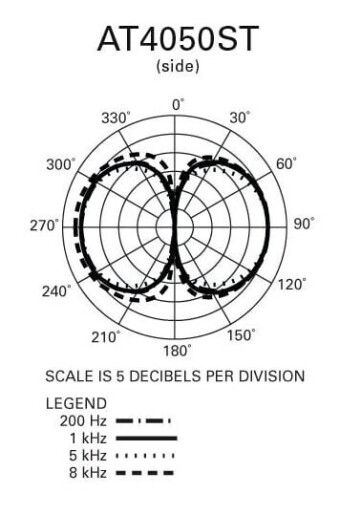

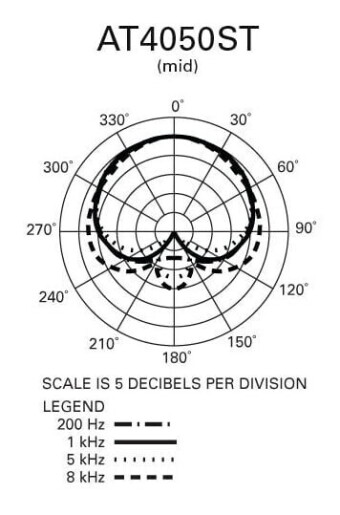

Polar Pattern Cardioid and Figure-of-eight

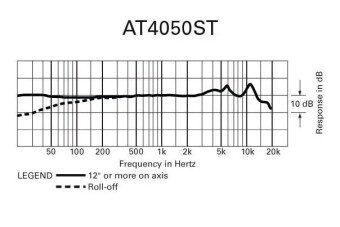

Frequency Response 20-18,000 Hz
Low Frequency Roll Off 80 Hz, 12 dB/octave
Open Circuit Sensitivity Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1 Pa
Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa
Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa
Side: -36 dB (15.8 mV) dB re 1V at 1 Pa
Maximum Input Sound Level Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
Noise Stereo 90°: 25 dB SPL
Stereo 127°: 16 dB SPL
Mid: 15 dB SPL
Side: 17 dB SPL
Dynamic Range Mid: 134 dB, 1 kHz at Max SPL
Side: 132 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio Stereo 90°: 69 dB, 1 kHz at 1 Pa
Stereo 127°: 78 dB, 1 kHz at 1 Pa
Mid: 79 dB, 1 kHz at 1 Pa
Side: 77 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 6.4 mA typical (both channels total)
Switches 90°, 127°, M-S;
Flat, roll-off;
10 dB pad (nominal)
Weight 517 g (18.2 oz)
Cable 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
Dimensions 193.0 mm (7.60") long,
53.4 mm (2.10") maximum body diameter
Output Connector Integral 5-pin XLRM-type
Accessories Included AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
Audio-Technica Case Style R1
