Word Clock Generator - The new generation
- Ultra-low jitter design
- 8 Selectable sample rates : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz

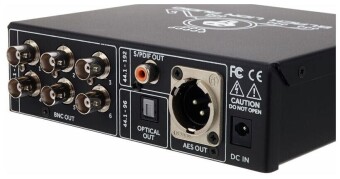

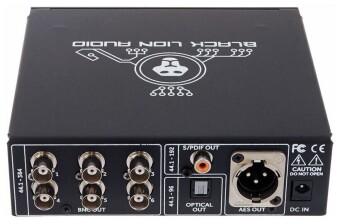

- 6 BNC outputs (75 Ohm) with separate output drivers for maximum isolation
- Coaxial S/PDIF output (75 Ohm), 44.1 kHz - 192 kHz
- Optical S/PDIF output (75 Ohm), 44.1 kHz - 96 kHz
- Symmetrical AES output (110 Ohm), 44.1 kHz - 192 kHz

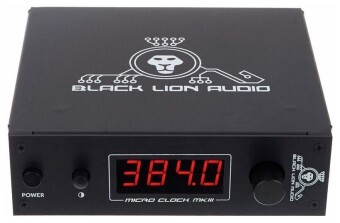

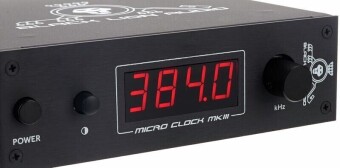

- LED display with frequency display
- External 9 V-DC power supply with 6 W power consumption
- Dimensions (W x D x H): 165 x 152 x 44.5 mm
- Weight: 1 kg

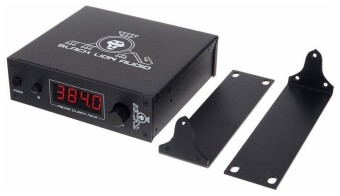

- Incl. Rack ears for 1U rack mount
характеристики
Скачать мануал Black Lion Audio Micro Clock Mk3
