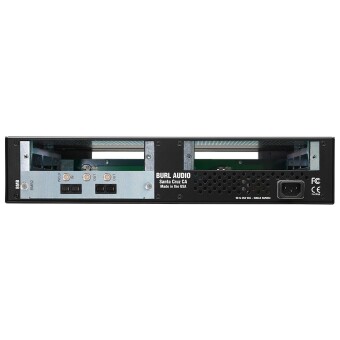

Burl Audio B16 Mothership - MADI

The Burl Audio B16 Mothership is a compact, portable, 2-slot version of the revolutionary B80 Mothership. This versatile digital audio interface provides up to 16 channels of Class A circuitry for adding analog color and character to sterile digital productions. With support for Digilink, MADI, Dante or SoundGrid connectivity, the B16 offers industry-leading IO. The B16 Mothership BMB2 - MADI includes a BMB2 MADI Motherboard.

The B16 offers unparalleled flexibility in any recording facilityﾗfrom music studios to broadcast stations to post-production houses. By utilizing swappable daughter cards, the B16 can be configured to meet your needs.

Each daughter card is equipped with transformers in the input stage and op-amps in the output stage, combining the flexibility and pristine sound of digital audio with the character and attitude of an all Class A discrete signal path.

Create a 16-input tracking system for a world-class mobile recording rig. Set up a 16-output portable mix rig and give your tracks the analog treatment no matter where you go. Configure B16 as an 8-in/8-out hybrid system for the best of both worlds. Create a non-traditional setup using the BAES4 card with 4 channels of AES in and out per card. Distribute up to eight word clock outputs per BCLK card for advanced post-production projects.

Each B16 Mothership is equipped with a swappable Motherboard for advanced digital connectivity. Choose from four versatile Motherboards for a wide array of digital connection options.

The BMB2 features two optical MADI ports for use with ASIO (Windows) or CORE AUDIO (Mac) PCIe MADI cards. With two optical ports, 64in/64out at 44.1k, 48k, 88.2k, 96k, and 32in/32out at 176.4k, and 192k are supported. With 6 BAD8s and 4 BDA8s, a 48x32 IO can be achieved. With 2 BAD8s and 8 BDA8s, a 16x64 IO can be achieved. With the configurability of the MOTHERHSHIP the IO possibilities are limitless.

• 2 optical MADI ports for 64 channel operation
• 2 BNC Word Clock outputs
• 1 BNC Word Clock input

• 2U main chassis
• BMB2 (MADI) Motherboard
• 2x empty card slots
• All slots accept AD/DA, AES and BCLK
