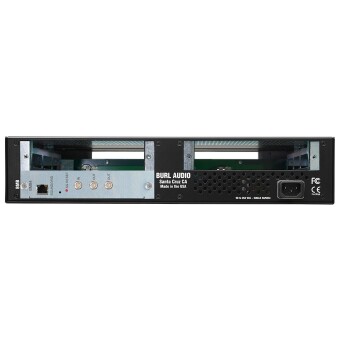

Burl Audio B16 Mothership - SoundGrid

The Burl Audio B16 Mothership is a compact, portable, 2-slot version of the revolutionary B80 Mothership. This versatile digital audio interface provides up to 16 channels of Class A circuitry for adding analog color and character to sterile digital productions. With support for Digilink, MADI, Dante or SoundGrid connectivity, the B16 offers industry-leading IO. The B16 Mothership BMB4 - Waves SoundGrid includes a BMB4 SoundGrid Motherboard.

The B16 offers unparalleled flexibility in any recording facilityﾗfrom music studios to broadcast stations to post-production houses. By utilizing swappable daughter cards, the B16 can be configured to meet your needs.

Each daughter card is equipped with transformers in the input stage and op-amps in the output stage, combining the flexibility and pristine sound of digital audio with the character and attitude of an all Class A discrete signal path.

Create a 16-input tracking system for a world-class mobile recording rig. Set up a 16-output portable mix rig and give your tracks the analog treatment no matter where you go. Configure B16 as an 8-in/8-out hybrid system for the best of both worlds. Create a non-traditional setup using the BAES4 card with 4 channels of AES in and out per card. Distribute up to eight-word clock outputs per BCLK card for advanced post-production projects.

Each B16 Mothership is equipped with a swappable Motherboard for advanced digital connectivity. Choose from four versatile Motherboards for a wide array of digital connection options.

The BMB4 features an Ethernet port for 64 IO channels of Waves SoundGrid connectivity. SoundGrid is an Audio-over-Ethernet networking and processing technology developed by Waves. SoundGrid provides extremely low-latency, high-channel-count audio processing using standard Intel CPUs and 1 Gbps Ethernet networks for studio, live sound, and other real-time professional audio applications. Real-time audio processing is performed on standard Intel-based plug-in servers, running a Waves-customized real-time version of Linux. Waves SoundGrid audio over Ethernet technology is a robust, proven system for audio over IP networking. Amongst the competing standards for audio over IP, SoundGrid boasts impressive, low latency. With 6 BAD8s and 4 BDA8s a 48x32 IO can be achieved. With 2 BAD8s and 8 BDA8s a 16x64 IO can be achieved. With the configurability of the MOTHERHSHIP the I/O possibilities are limitless.

• 1 SoundGrid Ethernet port
• 2 BNC Word Clock outputs
• 1 BNC Word Clock input

• 2U main chassis
• BMB4 (SoundGrid) Motherboard
• 2x empty card slots
• All slots accept AD/DA, AES and BCLK
