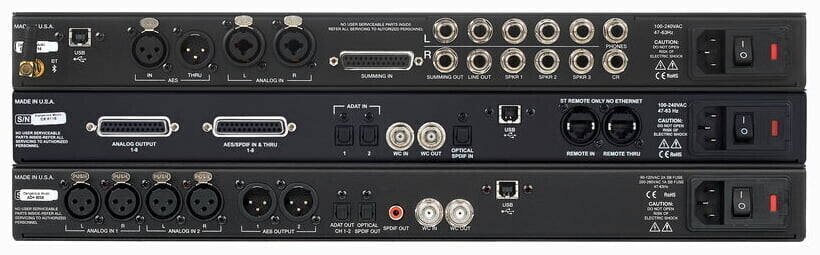

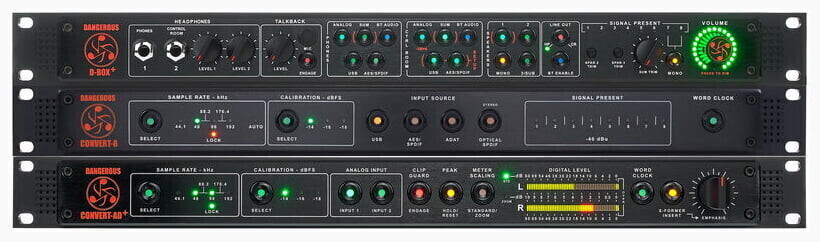

Professional Mixing and Mastering System
- Consists of Dangerous Music Convert-8, Convert AD+ and D-Box+

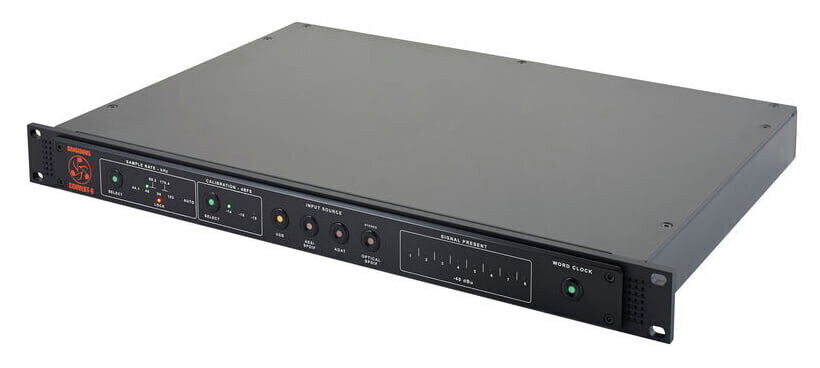

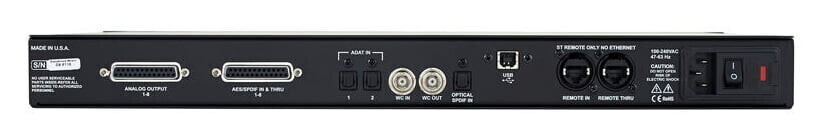

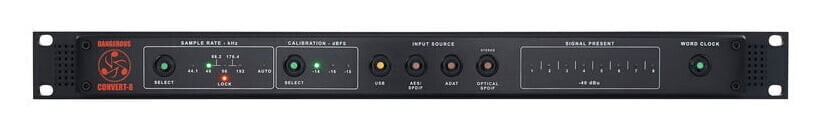

Convert-8 multi-channel DA converter
- For highest mastering demands
- 4 Digital input formats: USB, AES, ADAT, Optical SPDIF (Toslink)
- Sampling frequencies from 44.1 to 192 kHz with automatic detection
- High-definition stereo reference monitoring for stereo or surround (up to 7.1), extremely low-jitter clock
- USB input for direct DAW connection
- Compatible with Monitor ST/SR for remote switching
- Loop-through of digital input for external level metering

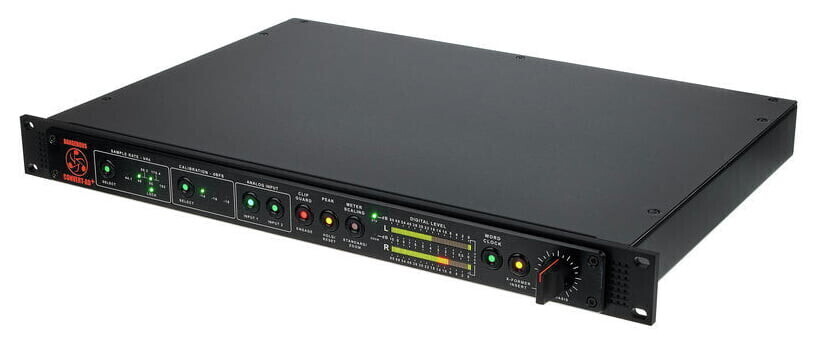

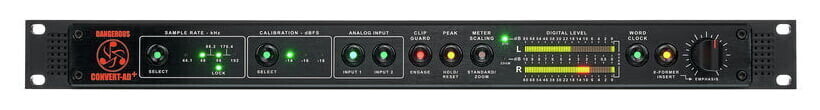

Convert AD+ stereo AD converter:
- 2 Selectable, discrete stereo input paths
- "Clip Guard" ensures that the red LEDs at the destination (e.g. DAW) no longer light up
- Custom-made digital display with normal and peak hold modes for precise visual feedback
- "Zoom View" for more accurate, magnified resolution
- Word Clock with three modes: Internal, External and Master
- X-FORMER
- EMPHASIS shelving EQ/compressor
- USB connection for Mac/PC
- Rich I/Os: 2 switchable stereo input paths, 2 AES outputs, ADAT optical output, SPDIF optical output, SPDIF COAX output

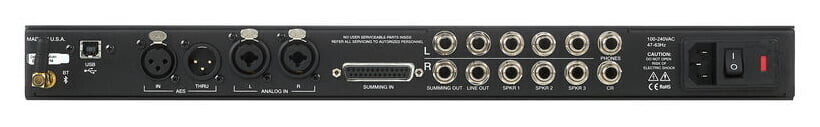

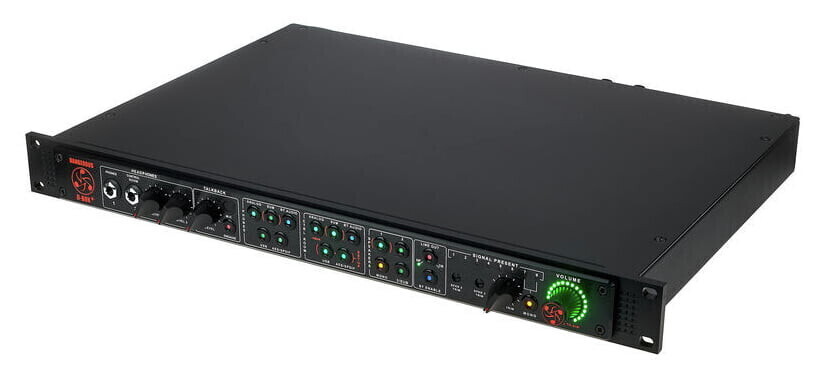

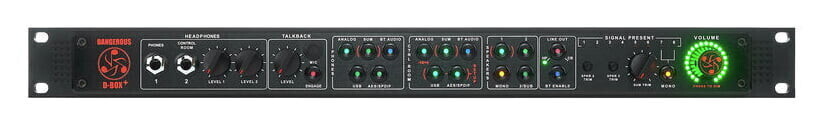

D-Box+ Combined summing and monitoring system:
- Digitally controlled volume control with extremely precise L/R synchronisation and adjustable dim
- 5 Analogue and digital inputs directly accessible (Analogue Stereo, Analogue Sum, USB, AES/SPDIF, Bluetooth) - multiple selection possible
- 8-Channel analogue summing (channel 7+8 mono switchable)
- Built-in talkback microphone with push-button activation (on the unit or via app)
- 2 Headphone amplifiers with independent source selection and volume control
- 3 Independent speaker outputs (selectable on the unit or via app)
