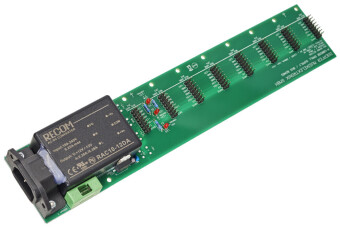

A-100SSB (Version 1.2) is a combination of power supply and bus board with 12 connectors for A-100 modules.
Planned for applications with up to 12 modules and a max. current of 380 mA. A-100SSB is available as ready built and tested unit.
These are the most important features:
- wide range mains voltage input 100-240V AC / 50-60 Hz
- IEC inlet on board for the connection of a suitable mains cable (a suitable cable has to be purchased by the customer locally)
- switching supply with +12V/380 mA and -12V/380mA for the operation of A-100 modules up to 380 mA total supply current
- safety cover at the bottom side (covers all elements that lead mains voltage)
- on board fuse
- 8 bus connectors
- LED displays for +12V, -12V and +5V (+5V are available only if e.g. the 5V adapter A-100AD5 is used)
- Dimensions: about 270 mm (length) x 55 mm (width) x 35 mm (height)
- several 3mm holes for mounting the unit on a rear panel or bottom plate.
