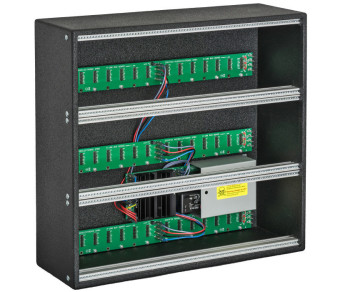

This an enlarged version of the A-100 low cost case with 9 U or three rows of modules. As only one power supply is required this is the most economic version of the A-100 low cost case. Apart from that the 9U version is identical to the 6U version.
Measures:
outside: approx. 445 (width) x 420 (height) x 160 (depth) mm
inside: 3 x 84 HP x 3 U (three bus boards), usable depth for A-100 modules: approx. 80 mm in the power supply area (bottom right), resp. approx. 110 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
Quantity of bus boards: 3
Weight (without modules): about 5,2 kg
Maximum Output Current:
with built-in A-100PSU2 (until about end of 2015): +12V/1200mA, -12V/1200mA
with built-in A-100PSU3 (since about early 2016): +12V/2000 mA, -12V/1200mA, +5V/4000mA
