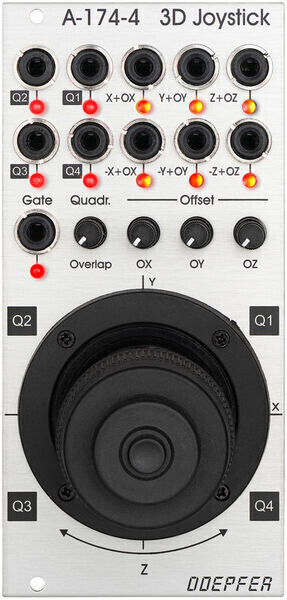

Doepfer A-174-4 3D Joystick- Eurorack module- Joystick with X/Y axis, rotating Z axis control and Gate button- spring-loaded X, Y an Z axis- CV outputs for X, Y and Z as non-inverted and inverted version (range: -5V to +5V)- CV offset control for each axis- 4 quadrant CV outputs (Q1-Q4) with controllable overlap (range: 0V to +10V)- Gate output- power consumption: 50mA (+12V) / 20mA (-12V)- width: 12 HP- depth: 50mm- Joystick heigth: 70mm
