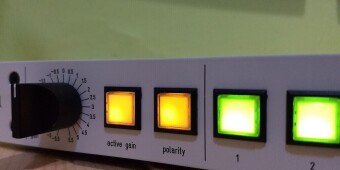

DuTCH.audio IM1.1 (1u 19 inch)

The IM1.1 1U 19 inch insert machine is ideal for the most demanding studios. The IM1.1 serves as an entirely transparent passive insert machine, and it also features bypassable active circuitry for functions such as input gain, mid/side processing and output gain. Utilizing our renowned analog circuitry, the IM1.1 includes 1 stereo input, 1 stereo output, and 6 stereo inserts (following the analog Tascam DB25 standard). Thanks to sealed relays, all inputs, outputs, and inserts remain fully passive, ensuring no alteration of sound during electronic switching. The exceptionally transparent active input offers a gain range of +/- 5.5dB in 0.5dB steps. Inserts 1 and 2 are entirely passive and can be swapped in order. Inserts 3 and 4 can operate in passive or mid/side mode.  Inserts 5 and 6 are entirely passive and can be swapped in order. Output can be stepped in either 0.5dB or 0.25dB per step or with a gain range switch to select 0.25 or 0.5 per step. It's also possible to choose a potmeter for the output section with a +/-10dB gain range.
