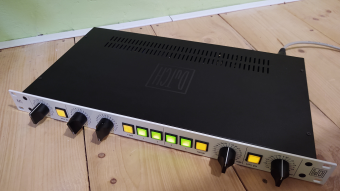

DuTCH.audio IM1.5 (1u 19 inch)

The IM1.5 1U 19 inch insert machine is ideal for the most demanding studios. The IM1.5 serves as an entirely transparent passive insert machine, and it also features bypassable active circuitry for functions such as input gain, mid/side processing, parallel processing, and stepped output gain. Utilizing our renowned analog circuitry, the IM1.5 includes 1 stereo input, 1 stereo output, and 4 stereo inserts (following the analog Tascam DB25 standard). Thanks to sealed relays, all inputs, outputs, and inserts remain fully passive, ensuring no alteration of sound during electronic switching. The exceptionally transparent active input and output gains offer a gain range of +/- 5.5dB in 0.5dB steps. The blend circuit on insert 1 features two separate controls for wet and dry, allowing for fully independent gain blending and level matched AB'ing. Insert 2 is fully passive. Inserts 3/4 can operate in passive or mid/side mode,. Additionally, the MS width can be adjusted from -6.5dB to +3.5dB.
