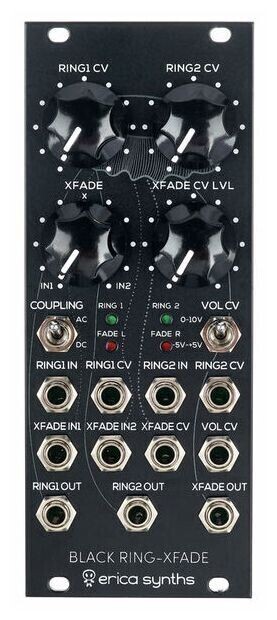

Eurorack Module
- Module for creative sound design with two ring modulators, crossfader and VCA
- Rotary knobs for ring modulator 1&2-CV
- Crossfader and crossfader CV
- Signal and CV input per ring modulator
- AC/DC switch for crossfader
- Two crossfader signal inputs and crossfade CV input
- VCA CV input switchable from unipolar (0V to +10V) to bipolar (-5V to +5V)
- Separate outputs for both ring modulators and crossfader/VCA
- Current consumption: 38mA (+12V) / 32mA (-12V)
- Width: 10 HP
- Depth: 35 mm
характеристики
Скачать мануал Erica Synths Black Ring-Xfade
