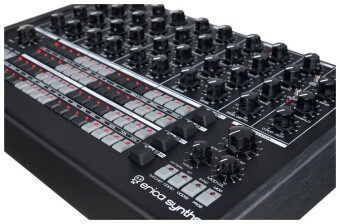

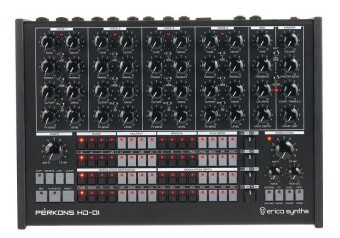

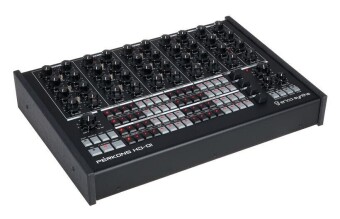

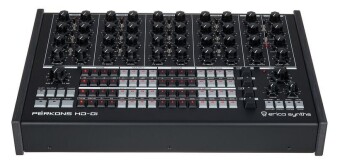

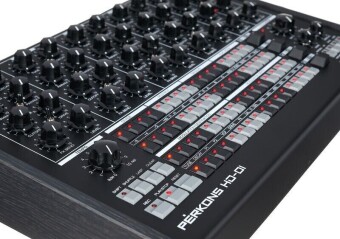

4-Voice Hybrid Drum Computer
Заводская спецификация и комплектация с сайта производителя
- Per voice: digital sound engine with 3 selectable algorithms and 2 adjustable parameters
- Analogue multimode filter (lowpass, bandpass, highpass), controls for tune, decay, cutoff, drive, FX send and level
- BBD delay with modulation LFO
- Master effects: Opto compressor and overdrive
- Freely assignable modulation LFO with continuously mixable waveforms
- Step sequencer with 16% steps
- 4 Selectable clock dividers/multipliers per track
- Ratchets and probability programmable per step
- 4 Selectable shuffle algorithms
- Memory locations for 64 patterns and 64 kits
- Velocity-sensitive trigger input (compatible with e-drum pads)

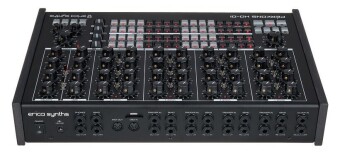

- Audio output and send/return sockets per voice: 6.3 mm jack
- Clock input and output: 6.3 mm jack
- Headphone output
- Master output and master send/return sockets: 6.3 mm jack
- MIDI in/out
- SD-Card slot
- Dimensions (W x D x H): 455 x 315 x 90 mm
- Weight: 4.5 kg
- Colour: Black

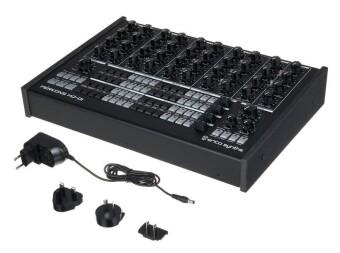

- Including external power supply unit 12V DC
