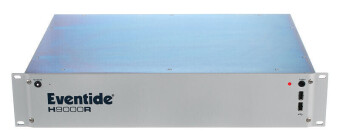

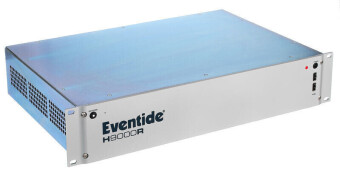

Multi-Effect Processor
Заводская спецификация и комплектация с сайта производителя
- Without controls and display - completely programmable via Eventide remote software
- Four quad-core ARM processors (16 DSPs)
- 1600 Algorithms
- Complex effect chains can be created
- 16-Channel USB Audio
- Up to 96 kHz
- 3 Mounting bays for optional MADI and Dante extensions
- Dimensions (W x H x D): 48.3 x 8.9 x 31.7 cm
- Weight: 6.4 kg

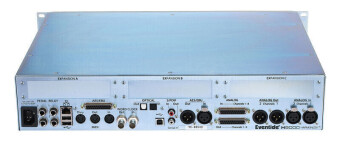

Connections:
- 8 Line inputs Sub-D25
- 2 Line inputs XLR
- 8 Line outputs Sub-D25
- 2 Line outputs XLR
- AES/EBU input and output

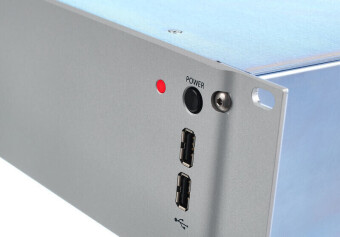

- 4 USB ports
- S/PDIF coaxial and optical / ADAT
- Word Clock input and output
- MIDI In/Out/Thru
- 2 Foot-pedal inputs jack 6.3 mm
- Ethernet port
характеристики
Скачать мануал Eventide H9000R
