USB audio interface

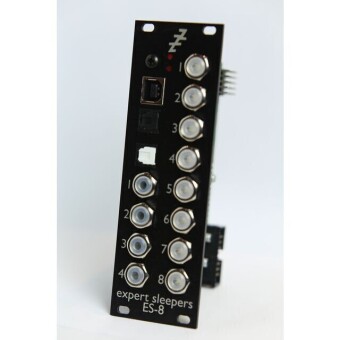

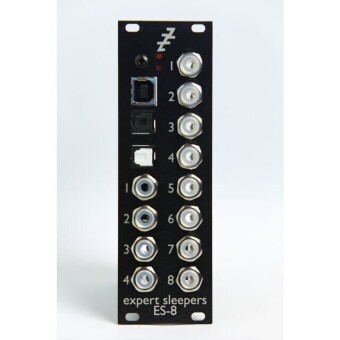

Expert Sleepers ES-8 is a USB 2.0 class-compliant USB audio interface in a Eurorack module with DC coupled inputs and outputs that can be used for both CVs and audio . As such, it is compatible with all popular computer-based CV generating programs and audio/CV processing iOS apps. The ES-8 also has one ADAT input and one ADAT output each. These Toslink optical jacks can be used to add additional inputs and outputs to the module or to use a traditional audio interface such as mic preamps or 1/4" line outputs. An expansion header on the back of the module allows the connection of an ES-5 Expert Sleeper, to which Gate, CV and MIDI Expander can be connected.
Expert Sleepers ES-8 at a glance:
- USB Type B
- class-compliant USB 2.0
- Supported sample rates: 44.1kHz, 48 kHz, 88.2kHz, 96kHz
- Audio sample depth: 24 bit
- Outputs: 8x 3,5mm connectors, DC coupled
- maximum output voltage: +/- 10V
- Analog inputs: 4x 3.5mm connectors, DC coupled
- Input voltage range: +/- 10V
- digital I/O: 1x ADAT input, 1x ADAT output
- Extension header for Es-5 and ES-6
