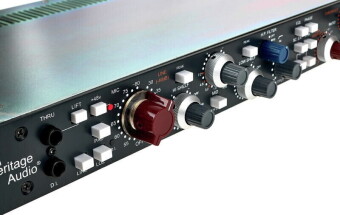

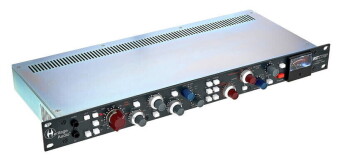

1-Channel Channel Strip in 1073 Style with Diode Bridge Bus Compressor
Заводская спецификация и комплектация с сайта производителя
- Preamplifier with Carnhill input and output transformers
- 3-Step discrete class A design
- Up to 80 dB gain
- 20 dB Pad
- Phase reversal
- Input impedance knob between 300 and 1200 Ohm
- DI Input with discrete class A JFET swich, as well as passive thru output to power a separate amplifier
- 73 EQ with bell modes for high and low shelving sections
- Successor compressor with blend control and sidechain filter with 5 frequency options
- Link option for stereo compression with two BritStrips
- Ratio: 1.5:1 to 10:1
- Attack time: Slow, fast
- Release time: 50 to 400 ms
- Auto program-dependent
- Routing of compression and equalizer

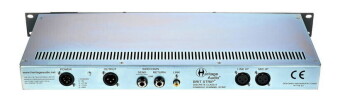

- 1 Microphone input: XLR
- 1 Line input: XLR
- 1 Line output: XLR
- DI input: 6.3 mm jack
- Thru output: 6.3 mm jack
- Sidechain send/return: 6.3 mm jack (unbalanced)
- Link connection: RCA

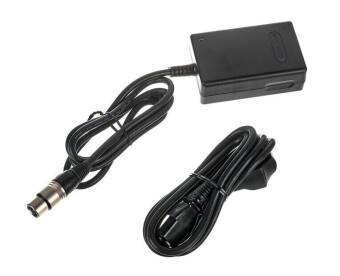

- Input for external power supply
- Format: 19" / 1 U
