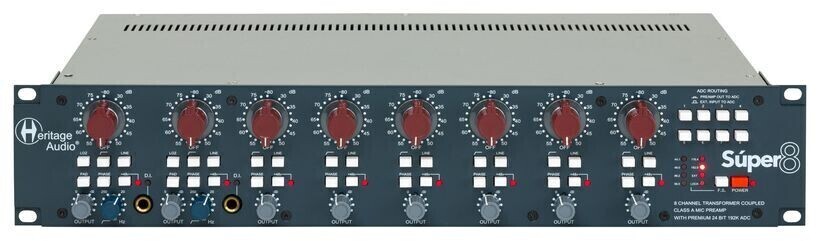

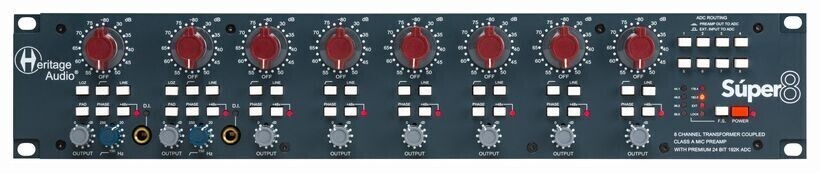

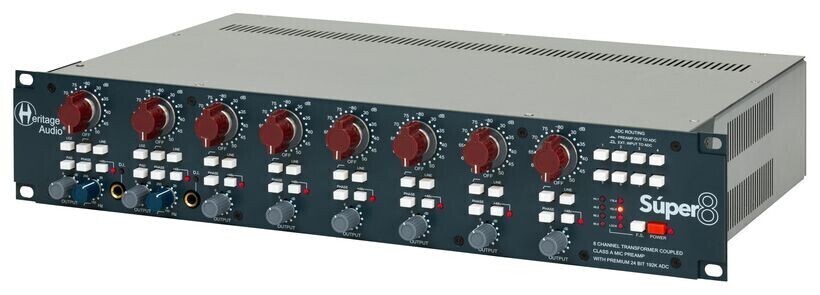

Microphone Preamplifier and AD/DA Converter
- 8-Channel transformer-coupled Class-A microphone preamplifier and AD/DA converter 24 bit / 192 kHz
- 3-Stage Class-A preamps in 73 style
- Carnhill transformer
- +48 V phantom power switchable per channel
- Low cut and phase reverse switchable per channel
- HP filter for channel 1 and 2: 20 - 250 Hz
- Construction: 19" / 3 U
- Dimensions (W x H x D): 482 x 88 x 280 mm
- Weight: 9.45 kg
- Incl. external power supply unit

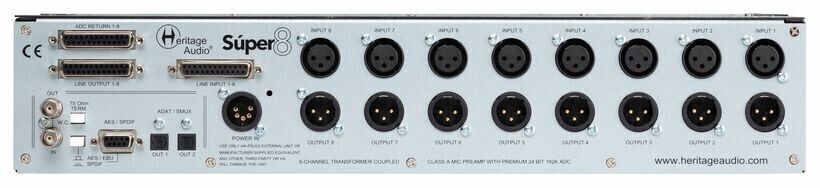

Connections:
- 8 Microphone inputs: XLR
- 8 Line inputs: Sub-D25
- 2 HI-Z instrument inputs: 6.3 mm jack
- 8 Line outputs: XLR
- 8 Line outputs: SubD-25
- 8 ADC return: SubD-25
- 2 ADAT outputs (SMUX)
- AES/EBU / S/PDIF: Coax 9-pin
- Word clock input and output: BNC
