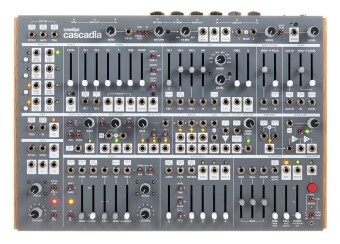

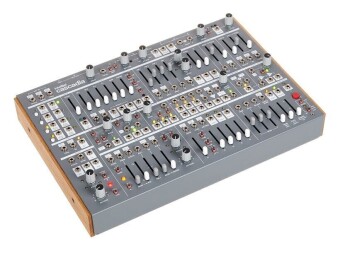

Semi-Modular Desktop Synthesizer
Заводская спецификация и комплектация с сайта производителя
- 2 analog oscillators
- Each with controls for coarse and fine tuning
- Sync input and 4 waveforms - sine, triangle, sawtooth and square
- VCO A with selectable Through-Zero FM, modulation index VCA and sub-oscillator
- VCO B with switchable LFO mode and selectable pitch CV source
- Noise generator: white noise, pink noise and digital noise with 4 variations
- 6-channel mixer with switchable soft-clipping and normalised to VCO A outputs and ringmodulator
- Line input with gain control for external signals
- Multimode filter with 4 CV inputs and 8 selectable filter modes: 6 dB / 12 dB / 24 dB lowpass, 12 dB / 24 dB bandpass, 24 dB highpass, notch and phaser
- Wavefolder
- VCA A with 2 inputs - normalised to Wavefolder and VCF
- VCA B with selectable Lowpass Gate mode
- Ringmodulator
- Sample & Hold stage
- ADSR envelope generator with 3 selectable time-ranges, hold stage and retrigger input
- Function generator with manual gate button, adjustable response curve and 3 selectable modes (envelope, LFO, burst generator)
- 3-channel triangle LFO
- Slew limiter and envelope follower
- Mixuverter section for mixing, attenuating and inverting signals
- Utility section with multiple, summer, inverter and unipolar/bipolar converter
- Programmable MIDI-CV interface with 8 outputs
- Pitch,gate and trigger inputs for external control sources
- Effects insert with controls for send, return and mix
- Main output with drive-control and switchable soft-clipping

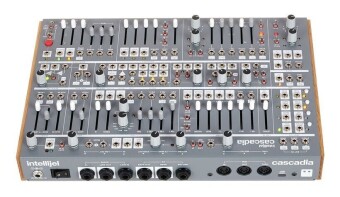

- Line output: 6.3 mm jack, balanced
- Line input: 6.3 mm jack, balanced
- Headphones output: 6.3 mm jack
- Expression output: 6.3 mm jack
- Effects send and return: 6.3mm jack
- MIDI in / out / thru: 5-pin DIN
- USB-C port for USB-MIDI
- Dimensions (WxDxH): 348 x 246 x 66 mm
- Weight: 1.94 kg

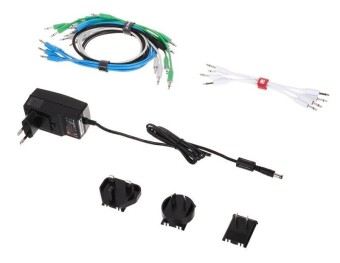

- Includes 14 patch cables, USB cable and external power supply
- Fitting Cascadia Rack Ears Kit (not included in the delivery)

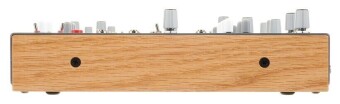

- Fitting Cascadia Metal Side Cheeks (not included in the delivery)
