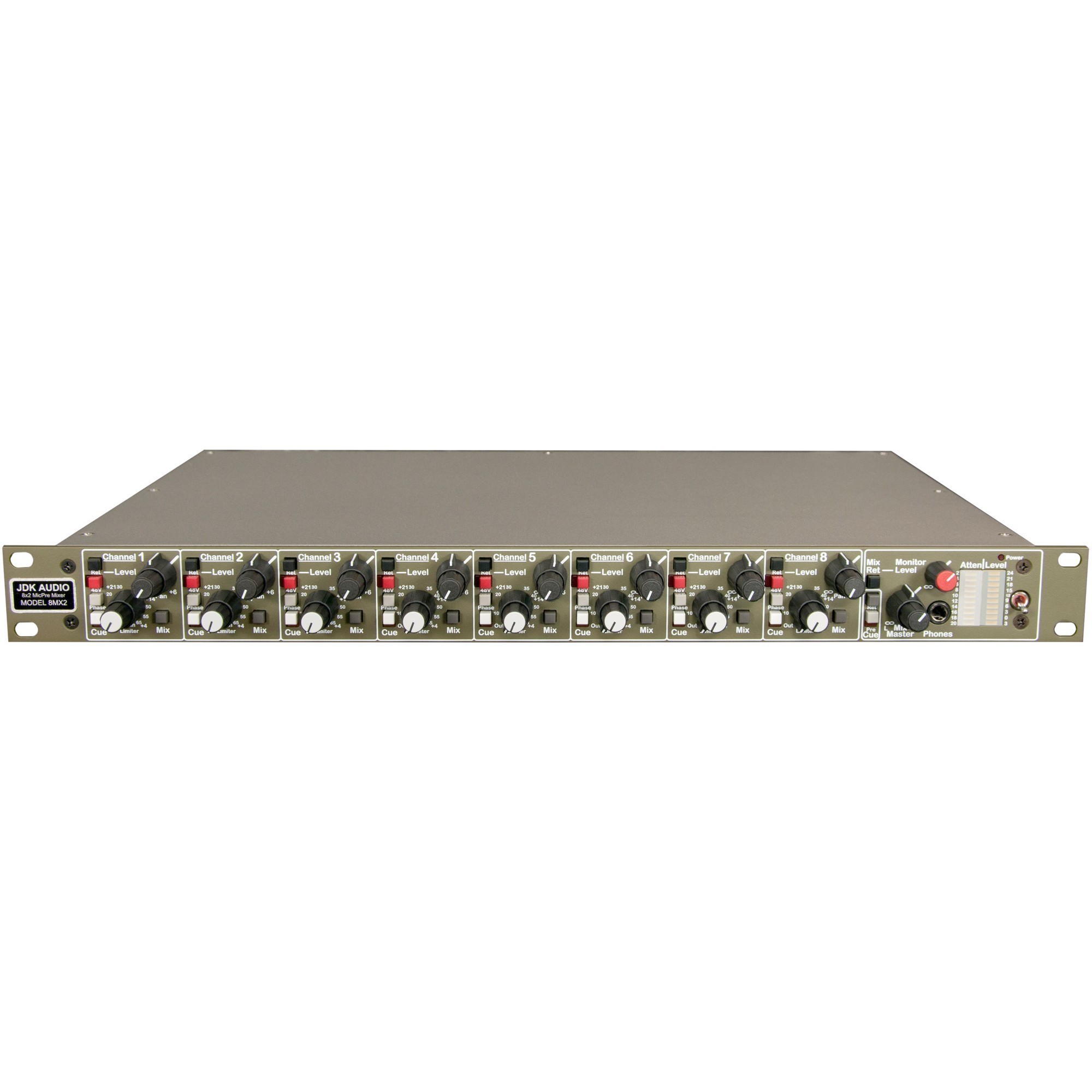

The extremely versatile 8MX2 rack mount preamp/mixer provides a huge amount of flexibility while fitting into just one rack space. This unit is perfect for all critical digital and analog projects, including at-home and remote recording as well as live broadcast feeds. Boasting +24 db of headroom, the 8MX2's microphone preamplifiers can be driven hard without clipping. This mixer allows engineers to feed the mixbus while simultaneously feeding the direct outputs.
Features:
• 8/2/8 mixer
• Eight line level multi-track returns
• Eight-into-two mix bus with pan
• 10-segment Input/Mix LED meter
• 10-segment Gain reduction meter
• Headphone and speaker monitor Out
• Eight channels in 1u rack space
• Link multiple units
Each channel includes:
• +/- 48v Hi-voltage mic pre
• Threshold limiter
• Direct "Out"
• Selectable 48v phantom power
• Cue Select
• Return Level pot
• Return Pan pot
• Mix Bus Select
• Phase Reverse Switch
| Power Consumption, Quiescent: | 53.76 Watts |
| Dimensions: | |
| Size: | 19" X 1.75" (1U) X 12.5" Deep |
| Size (Boxed for Shipping): | 23.25" X 6.5" X 16" |
| Actual Weight: | 9.1 lbs |
| Shipping Weight: | 13 lbs |
