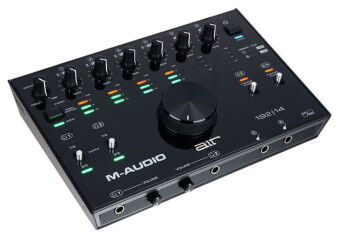

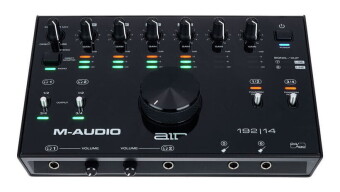

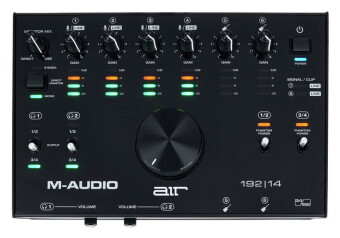

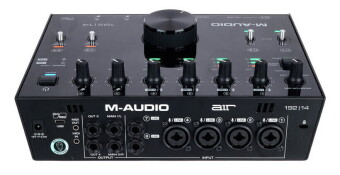

USB Audio Interface
- High-quality converters with 24 bit / 192 kHz resolution
- Hi-Speed USB-C connection

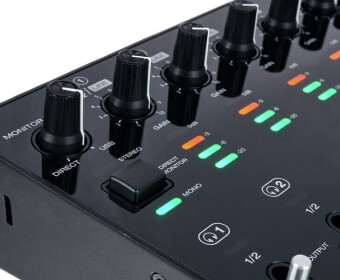

- Direct monitoring

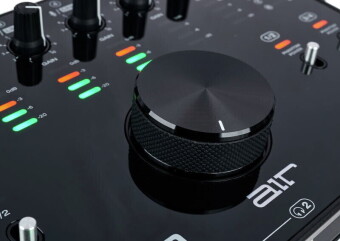

- Central large volume control

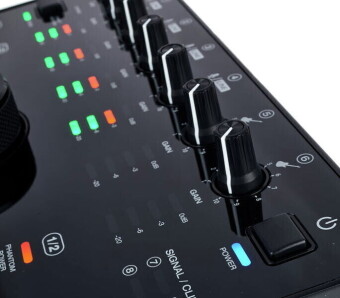

- Low-noise M-Audio Crystal preamps

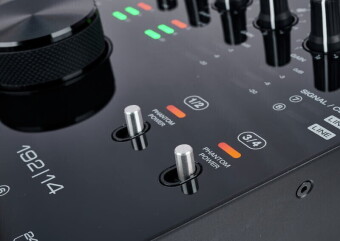

- +48 V Phantom power for channels 1-4
- 4 Mic/Line inputs: XLR/TRS combo jack
- 2 Instrument inputs: 6.3 mm TS
- 2 Line inputs: 6.3 mm TRS

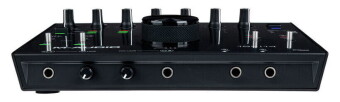

- 4 Line outputs: 6.3 mm TRS
- 2 Headphone outputs: 6.3 mm TRS
- MIDI Input / Output: 3.5 mm TRS (DIN adapter included)
- Robust metal housing
- Dimensions: 259 x 189 x 82 mm
- Weight: 1.8 kg
- Compatible with Windows 7 and higher, class-compliant for Mac OS X
- Includes power supply unit (12V AC) and software package as download: Ableton Live Lite, Creative FX Collection, Xpand!2, Mini Grand, DB33, Strike, Hybrid 3, Touch Loops, Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects, MPC Beats
