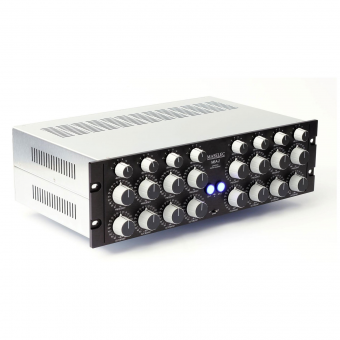

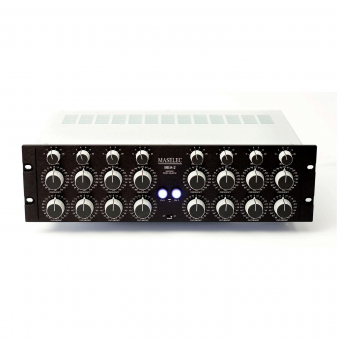

The MEA-2 Precision Stereo Equalizer is designed for recording and mastering applications where ultimate sonic performance is required.
Top recording and mastering engineers still use some analogue signal processing equipment, finding the familiar correlation between sound and control easier to work with. However, most analogue equalizers have either continuously variable controls, making precise adjustments difficult, or just a few course stepped controls. Many fail to meet the standards of audio performance consistent with digital delivery media.
Through extensive research and the legacy of the highly acclaimed Maselec 9001 retrofit equalizer for SSL 4000 mixing consoles used in top film and recording studios, we now introduce the Prism Sound Maselec MEA-2 Precision Stereo Equalizer.
The first in a new range of Maselec Master Series products, the MEA-2 was developed in association with engineer/producer Leif Mases. Leif's work with a diverse range of artists including Abba, Led Zeppelin and Black Sabbath is demonstrated by the MEA-2's design with the engineer in mind:
MEA-2 FEATURES
- Four separate equalizer sections per channel
- All controls are stepped for accurate adjustment and recall of settings
- Completely overlapping frequencies (in parallel bands) give maximum creative freedom
- Excellent channel-to-channel phase compatibility for improved stereo imaging
- Interactive Gain and Bandwidth controls for constant width of equalized area when changing boost/cut settings
- Unique circuit designs give a ring-free sound even for very narrow bandwidths
- 84 discrete frequencies per channel
- All sections switchable between shelving and five different bell-bandwidths
- Large size controls for comfortable operation
- Dynamic range greater than 110dB
- Electronically-balanced inputs and outputs eliminate interconnection problems, and audibly improve signal integrity
CONTROLS
There are four separate equalizer sections per channel with completely overlapping frequencies (in parallel bands) with carefully selected increments for maximum flexibility. All sections are switchable between Shelving and five different Bandwidths. The channel to channel phase compatibility is excellent and all settings are easy to identify. There are 84 (eighty-four) discrete frequencies per channel. All controls are large for comfortable operation.
CONSTANT BANDWIDTH
Interactive controls for Level and Bandwidth maintain constant width (cross-over points) of equalized area when changing boost/cut levels. This greatly improves the musical response of the unit.
RECIPROCAL CURVES
Cut and boost curves are mirror images enabling correction of previous equalization.
SELECTIVITY
'Q' values of the filters automatically change with cut and boost levels. As a result very selective (narrow) corrections can be made with minimum interference to other areas of the audio.
SPECIFICATIONS
- Bandwidths:
4, 6, 9, 14, 20 dB/octave bell, plus shelving - Frequencies:
19, 21, 22, 24, 26, 29, 31, 34, 37, 41, 43, 48, 51, 57, 60, 67, 71, 79, 84, 92, 98, 108, 114, 126, 134, 148, 158, 173, 185, 203, 218, 240, 258, 280, 305, 332, 364, 400, 435, 477, 530, 572, 617, 665, 727, 787, 862, 937, 1k0, 1k1, 1k2, 1k3, 1k4, 1k5, 1k7, 1k8, 2k0, 2k2, 2k4, 2k6, 2k8, 3k0, 3k3, 3k6, 3k9, 4k2, 4k6, 5k0, 5k4, 5k9, 6k4, 7k0, 7k6, 8k2, 9k0, 9k7, 11k, 12k, 13k, 14k, 17k, 19k, 24k, 27kHz. - Boost:
+0.5, +1, +1.5, +2, +2.5, +3, +4, +5, +6, +8dB - Cut:
-0.5, -1, -1.5, -2, -2.5, -3, -4, -5, -6, -8dB - Frequency Response:
1Hz to 100kHz, +0,-3dB - Distortion:
Typically less than 0.01% - Noise:
Typically less than -90dBu - Input Impedance:
29kR (electronically balanced) - Max Input Level:
+28dBu - Max Output Level:
+28dBu into 600R (electronically balanced) - Power:
110-120/220-240V, 50/60Hz, 50W
