PMC 6-2

PMC6-2

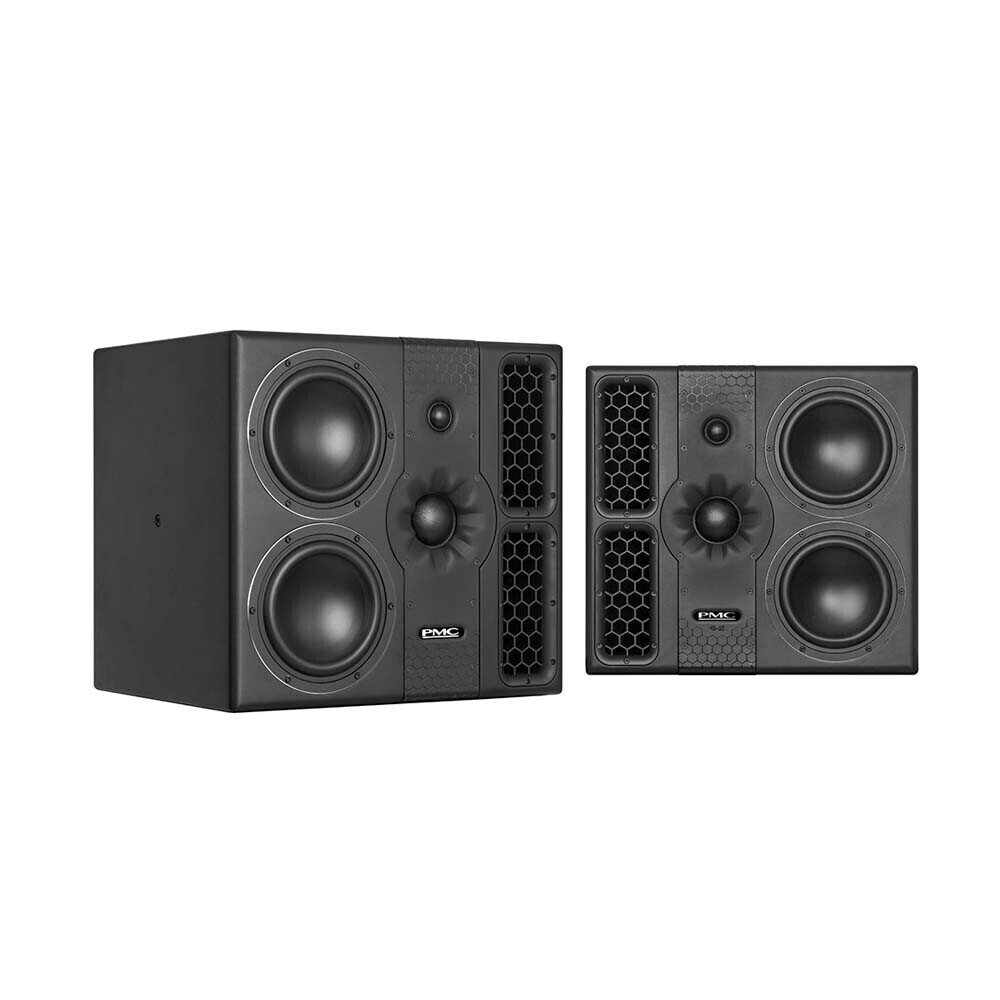

Active 3-way nearfield reference monitor with ATL™ bass loadingThe PMC6-2 provides main-monitor scale, depth, and dynamics, and allows mix decisions to be made quickly, with absolute certainty and without fatigue. This 3-way active monitor speaker combines two custom 6-inch ultra-long-throw bass-drivers with our radically engineered PMC55 2-inch soft-dome mid-range unit and a precision-built one-inch soft-dome tweeter. The PMC55’s distinctive ‘N-compass’ waveguide enhances the wide dispersion and remarkable mid-range projection of the driver; in combination with the high performance of the tweeter, the result is an ultra-wide and stable image, with a smooth and natural in-room response. Each bass driver is individually powered by a cutting-edge 400W Class-D amplifier and seamlessly integrated by our sophisticated, highly accurate DSP-based crossovers. As with the PMC6, the monitor is configured using rear-panel controls or the browser-based SoundAlign™ software, with comprehensive boundary and EQ options. The PMC6-2 offers astonishing size-to-performance ratio thanks to its ATL™ bass-loading technology, which results in exceptional LF extension and consistent tonal balance at all listening levels. Our Laminair™ airflow technology, visible in the monitor’s hexagonal vent ducts, further reduces colouration and enhances dynamics and efficiency. A simple upgrade path converts the PMC6-2 to a full-range XBD system; just add a PMC8.2 SUB and select XBD mode to perfectly dovetail the two units, extending the response down to 25Hz with additional headroom. Specifications

• Type Active 3-way nearfield reference monitor with ATL™ bass loading

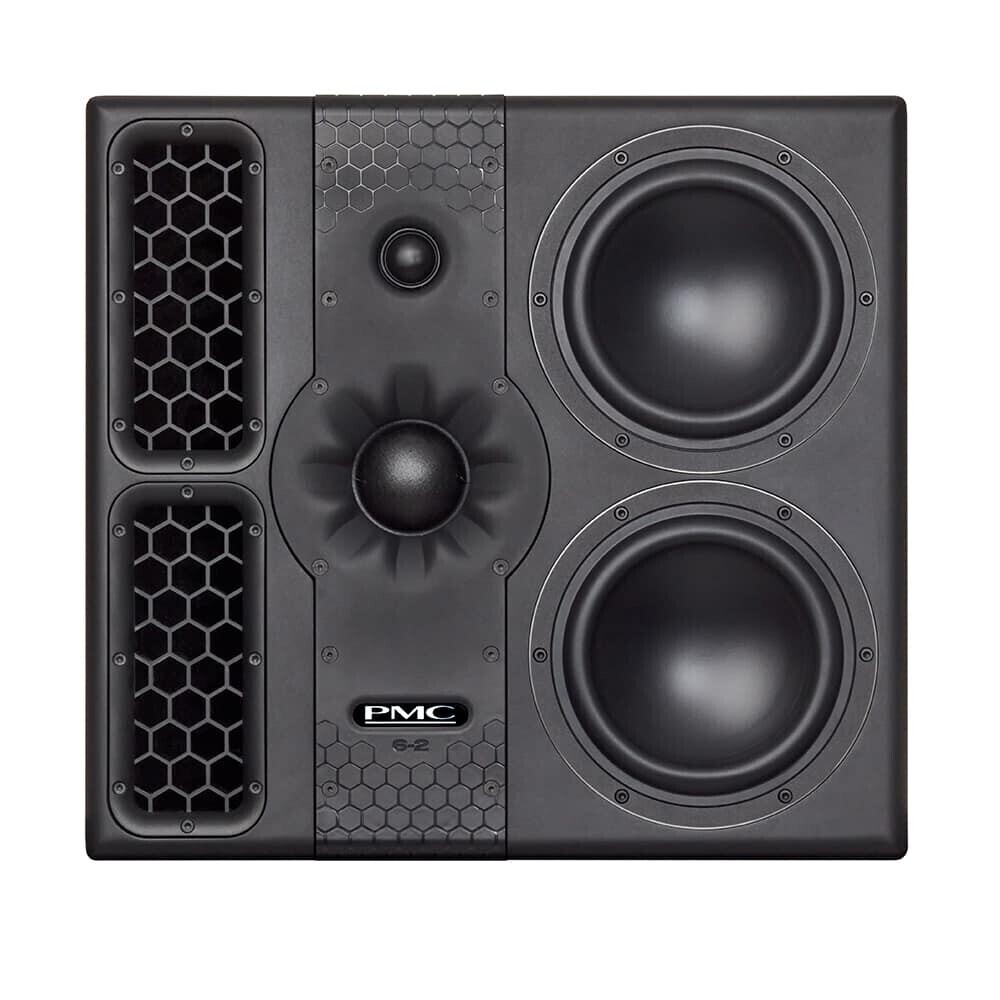

• Drive Unit Complement
  LF 2 x PMC 150mm (6”) studio 6 drivers
  MF PMC 55mm (2”) soft dome mid-range
  HF PMC 27mm (1”) soft dome tweeter
• Effective ATL™ Length 2m (6.6ft)
• Frequency Response 33Hz – 25kHz (- 3dB) (@1m full space, on-axis)
• Sensitivity +4dBu input signal = 98dB SPL @ 1m
• Max continuous SPL 109dB @1m
  (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• Max Peak SPL 121dB @1m
  (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• Directivity
  H +/-50 degrees
  V +60/-40 degrees (-6dB off axis @10kHz)

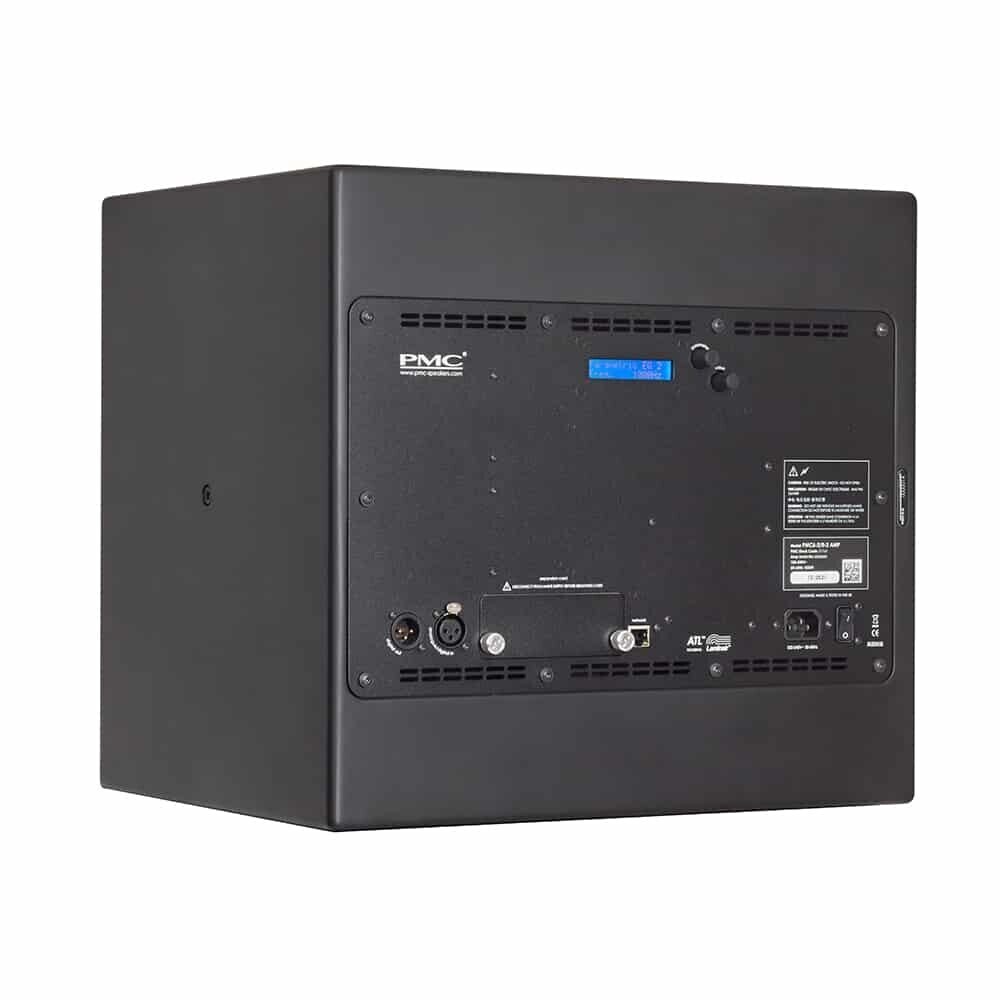

• Input XLR switchable between analogue & digital AES3
  Analogue input – +20/+24dBu max. input level (selectable) – 22K ohm input impedance
  Digital input – 16/24-bit AES3 signal, left, right or left + right – 18 – 192kHz Sample Rate – 110 ohm input impedance
  Expansion card slot – For future connectivity upgrades
• Output XLR digital AES3 (fixed 24-bit @ 96kHz)
• Network RJ45 for use with PMC SoundAlign web interface
• Features
  Level Trim (+/-10dB)
  High-pass filter (20 – 200Hz, 12dB/Oct)
  Delay (0 – 30mS) Phase (normal or inverted)
  LF & HF shelving filters (20Hz – 20kHz, +/- 10dB, Q 0.707)
  Parametric EQ (5 bands, 20Hz – 20kHz, +/- 10dB)
  User presets (3 + factory defaults)
• Latency 2.4mS
• Amplifier power per channel
  LF 2 x 400Wrms
  MF 1 x 400Wrms
  HF 1 x 400Wrms
• Mains 100 – 240VAC auto-switching, 50-60Hz (IEC C14)
• Power consumption (idle) 50W
• Power consumption (max) 1500W
• Cabinet dimensions
  H 400mm (15.7”)
  W 430mm (16.9”)
  D 372mm (14.6”)
• Weight 21.3kg (47lbs) each
