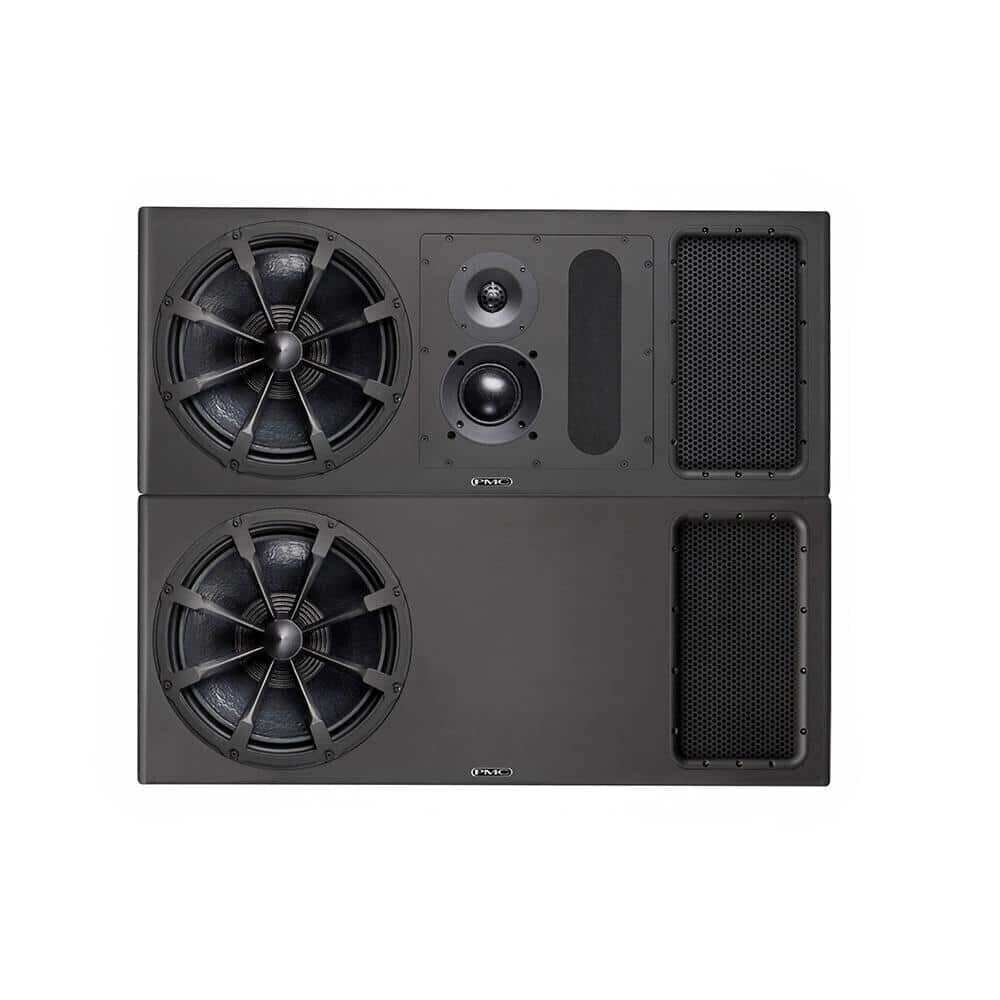

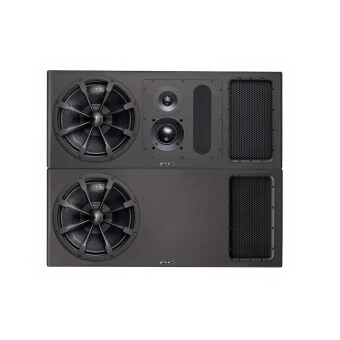

PMC BB6S XBD-A-C

PMC BB6S XBD-A-C centre

• Type: 3-way ATL™ active reference monitor
• Frequency response: 17Hz-25kHz
• Power per channel: 5625W (HF 275W, MF 550W, 2 x LF 2400W)
• Effective ATL™ length: 2 x 4 metres
• Maximum SPL: 131dB

• Available Finishes: Studio black
• Crossover Frequency: 380Hz & 3.8kHz
• Dimensions: H 2080mm (81.8″) x W 432mm (17″) x D 790mm (31.1″)
• Drive Units: LF – 2 x PMC 380mm (15-inch) Radial driver
  MF – PMC hand built 75mm soft-dome driver
  HF – PMC 34mm soft-dome tweeter with acoustic radiator
• Effective ATL™ Length: 2 x 4m (13ft)
• Frequency Response: 17Hz – 25kHz
• Impedance: Input Impedance 20k Bal
• Input Connectors: AES3, 24-bit, 96kHz
• Weight: 136kg (300lbs) each
• Amplifier Power per Channel: LF – 2 x 2400Wrms
  MF – 1 x 550Wrms
  HF – 1 x 275Wrms
