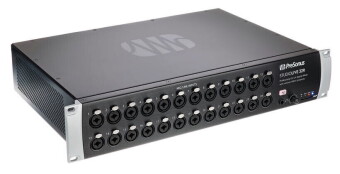

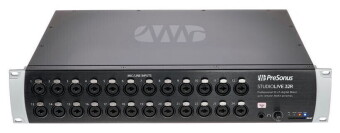

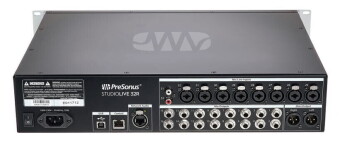

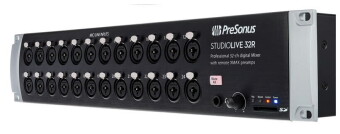

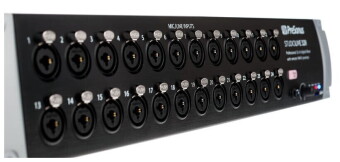

32-Channel Digital Rack Mixer with Integrated Audio Interface
- AVB stage box mode for StudioLive Series III mixers
- 32 Microphone / Line inputs XLR / jack 6.3 mm combo sockets with 48 V phantom power
- Stereo aux input RCA (L/R)
- 16 AUX sends
- 16 Mix outputs 6.3 mm jack balanced
- 2 XLR main outputs (L/R)
- Stereo headphone output 6.3 mm jack
- "Mute All" button to mute all inputs and outputs
- Integrated SD card recorder (stereo) for recording the main signal and as a player
- 40x40 USB recording interface, 55x55 AVB recording interface
- Converter: 24 Bit / 48 kHz with 115 dB dynamic range
- Fat channel signal processing: Polarity, high-pass filter, gate / expander with sidechain, fully parametric 4-band EQ, compressor with sidechain, limiter, including vintage plugins for EQ and compressor
- 4 Master effects processors including vintage reverb plugins
- Line delay in all inputs and outputs
- Fully parametric 6-band EQ in all outputs, 8 graphic EQs (31-Band)
- Presets plus user memory for Fat Channel, effects and graphic EQ
- USB connection, Ethernet control connection, Ethercon AVB audio network connection
- Control software "UC Surface" for OS X, Windows, iPad and Android tablet
- Free "QMix-UC" monitoring app for iPhone, iPod Touch and Android smartphones
- System requirements: Mac OS x 10.8.5 64-bit or newer, Windows 7 x64/x86 SP1, Windows 8 x64/x86, Windows x64/x86
- Build: 19"/ 2 U
- Dimensions: 483 x 305 x 90 mm
- Weight: 5 kg
- Includes "Capture" recording software, "Studio One 3 Artist" DAW software, "Studio Magic" plugin suite (for download) and Fat Channel Plugin Collection
