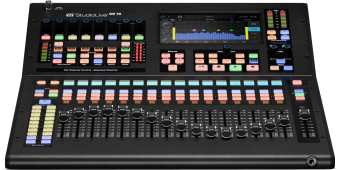

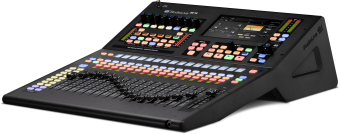

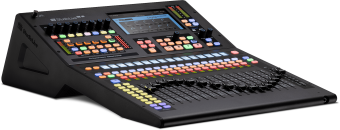

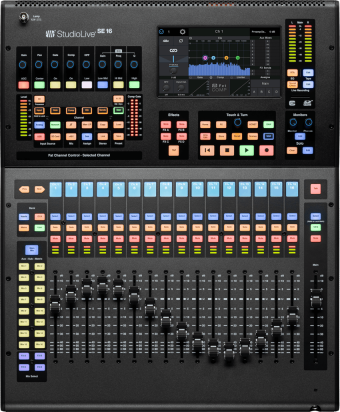

Presonus StudioLive Series III SE 16
PreSonus StudioLive Series III SE 16 — цифровой микшерный пульт: 40-channel, 26-bus, с 17 моторизованными фейдерами, USB-аудиоинтерфейсом 64x64 и AVB Audio Networking (Milan-certified).
Ключевые особенности:
- Интегрированная многодорожечная запись: SD recorder или USB audio interface 64x64.
- AVB networking с StudioLive Stage Boxes и Milan-compatible I/O.
- 17 XMAX-Remote preamps, 32-Bit floating-point DSP.
- 16 FlexMixes (aux/subgroup/matrix), 4 dedicated effects buses, 4 subgroups, 24 DCAs.
- Fat Channel Processing: 7 EQs и 8 Compressors (Fat Channel Collection), включая модели Brit Comp, FC-670, Tube EQ и др.
- Remote access и управление через Universal Control; персональный мониторинг через QMix-UC.
- One-click Virtual Soundcheck с Capture; совместимость с Fender Studio Pro и DAW.
Технические характеристики:
- Digital Audio Internal Processing: 32-Bit, Floating Point; Digital Audio Bit Depth: 24.
- Supported Sample Rates: 48 kHz, 44.1 kHz; SD Recorder Sampling Rate: 44.1 or 48 kHz.
- Digital Audio Dynamic Range: ADC 115 dB (A-Weighted, 48 kHz), DAC 115 dB (A-Weighted, 48 kHz).
- Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active).
- Phantom Power: +48 VDC (±2 VDC).
- SD: SD Card 2 GB; SDHC Card 32 GB; Supported Media: FAT16 SD, FAT32 SDHC; File format: WAV.

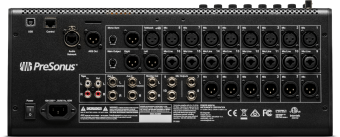

- I/O: Mic in XLR Female (Balanced); Line in 1/4" TRS Female (Balanced); Line out 1/4" TRS Female (Balanced); AES/EBU out XLR Male; USB 2.0 Type-B; AVB ports Neutrik etherCONN; Network control RJ-45; Tape RCA Female (Unbalanced).
- Headphone Jack: 1/4" TRS Active Stereo; Max output: 100 mW/ch. @ 60Ω load.
- Power Consumption: 85W (Continuous); VoltageRequirements: 100-230 VAC, 50-60 Hz; Power cable: IEC.
- Размеры: 22.97” (583.84 mm) × 17.59” (446.66 mm) × 6.51” (165.36 mm); Вес: 23.15 lbs. (10.5 kg).
- Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit.
характеристики
Скачать мануал Presonus StudioLive Series III SE 16
