The NXL 24-A is an active column speaker array system with four 6” high power woofers and a 2.5” voice coil compression driver loaded on a 100° x 30° constant directivity waveguide. The amplifier delivers 1,400 Watts and is controlled by a DSP handling crossover, equalization, phase alignment, soft limiting, and speaker protections. Equalization can be applied to a single unit or a pair of speakers.

RCF NXL 24-A MK2 Features

1,400 Watt Class D bi-amplification
131 dB SPL
65 Hz - 20 kHz frequency response

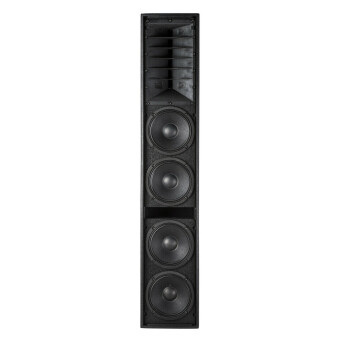

4 x 6" woofers
2.5" voice coil RCF Precision C. Driver on a waveguide
100° x 30° slightly tilted pattern control
DSP controlled input section with single or dual EQ preset
Easy to fly and install with built-in rigging points and pole mount socket
Thermal and RMS protections
Soft Limiter
Controls for volume, EQ shape, mic/line

In The Box

1x NXL 24-A MK2 2-way column array powered speaker

Product Specifications

Frequency response: 65 - 20,000Hz
Max SPL (@ 1M): 131dB
Horizontal coverage angle: 100°
Vertical coverage angle: 30°
Compression driver: 1.4", 2.5" v.c
Woofer: 4 x 6", 1.5" v.c
Input signal: bal/unbal
Input connectors: XLR, jack
Output connectors: XLR
Input sensitivity: -2dBu / +4dBu
Crossover frequencies: 800Hz
Total power: 1400W peak, 700W RMS
Low frequencies: 1000W peak, 500W RMS
Connections: Powercon IN/OUT
Cabinet/case material: Baltic birch plywood
Grille: steel
Hardware: 4x MB, 4x quick lock
Handles: 2 side
Pole mount/cap: yes
Dimensions (HxWxD): 41.57" x 7.91" x 10.79"
Weight: 58.2 pounds (26.4 kg)
