Effects pedal
Заводская спецификация и комплектация с сайта производителя
- Overdrive
- Combines the sounds of the BOSS BD-2 Blues Driver & the Angry Charlie by JHS Pedals
- 3 Double-turn controls for independent control of drive, tone and level with each overdrive type
- Mode switch to select the Overdrive type
- Two serial connections for stacked sounds or parallel connection
- Extra mode switches between BOSS and JHS overdrives. (integrated pedal switch)
- Connection for optional foot switch or external effect switcher for remote control of pedal modes and bypass
- Multi-colour LED: BOSS mode (blue), JHS mode (red) Combined mode (purple)
- Input: 6.3 mm jack
- Remote input: 6.3 mm jack
- Output: 6.3 mm jack

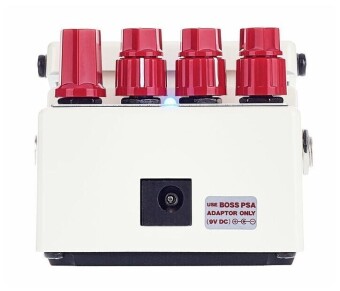

- Power supply connection (coaxial socket 5.5 x 2.1 mm - negative pin inside)
- Power consumption: 50 mA

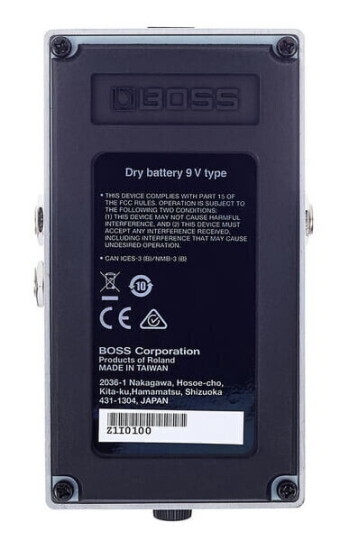

- Power supply with 9 V battery or via 9 V DC power supply (not included, suitable power supply)
- Dimensions (W x D x H): 73 x 129 x 59 mm
- Weight: 440 g
- 5 years BOSS warranty
