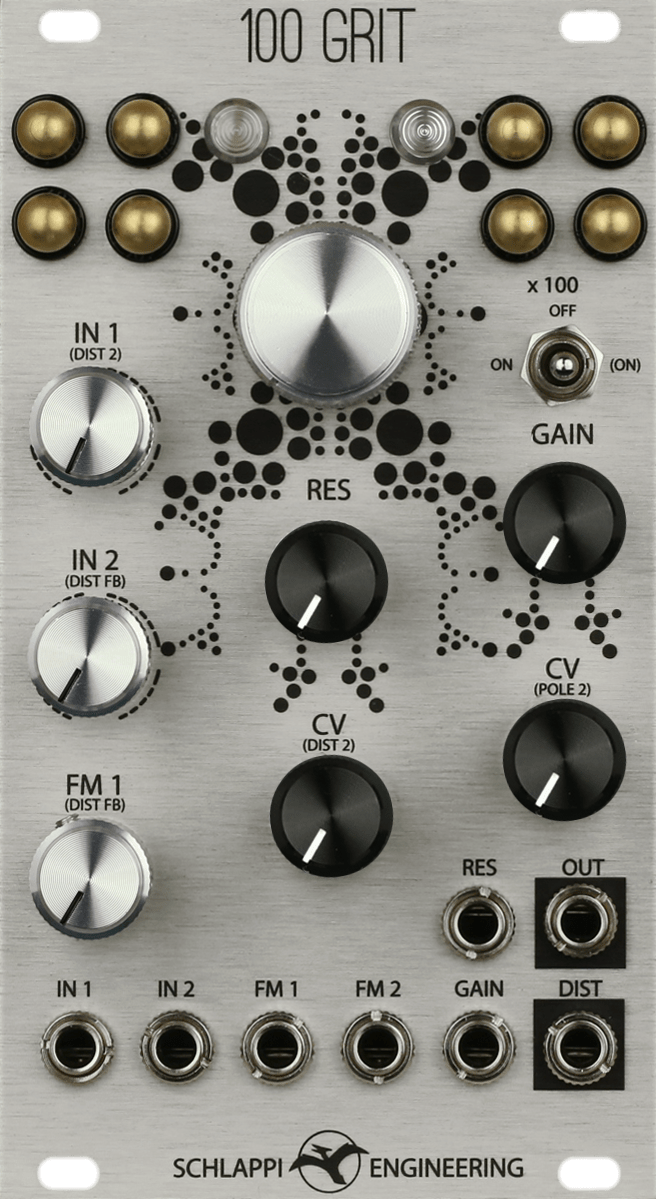

Schlappi Engineering 100 Grit Silver

The 100 Grit is a touch controlled distortion unit inspired by the output section of a vintage synthesizer. Sonically it can range from subtle tone shaping to complete sonic obliteration depending on the positions of the knobs and output chosen.

• 8 brass touchpoints
• 2 inputs to transistor core low pass filter
• Voltage control over frequency, resonance, and gain
• OTA VCA with soft saturation characteristics
• Distortion circuit based around a vintage headphone amplifier driven into instability
• Three position x100 gain switch with off, on, and momentary on settings
• Each input and cv input is normalled to a different feedback path (6 total)
• Seperate outputs for the VCA and distortion
• Can operate as a vintage voiced VCA and LPF or a screaming distortion and noise effect
• All analog design
• 14 HP
• Skiff friendly 25mm depth
• POWER DRAW: +12V 55mA, -12V 70mA
