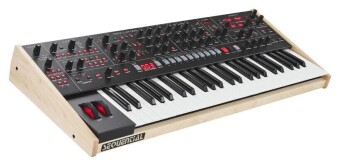

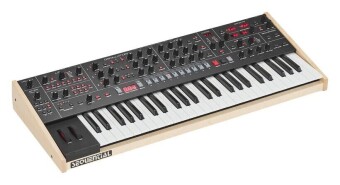

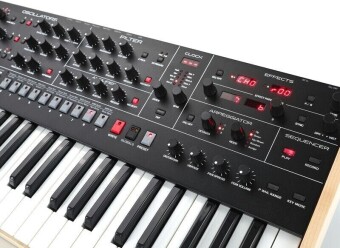

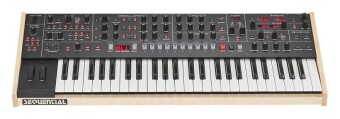

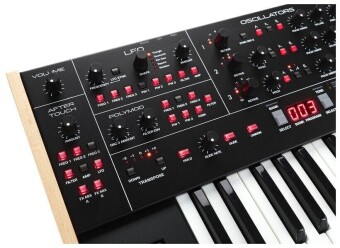

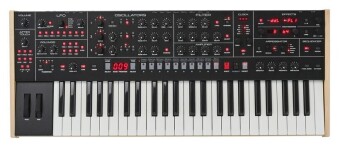

Sequential Trigon-6

• 6-Voice polyphonic
• 4 Octave semi-weighted keyboard with 49 keys, velocity sensitive and aftertouch
• 3 Discrete VCOs per voice
• Simultaneously selectable waveforms: triangle, sawtooth, inverted sawtooth and variable-width pulse
• Pulse width per oscillator
• Hard sync: oscillator 1 synchronises with oscillator 2
• LFO mode (oscillator 3)
• Keyboard tracking on/off (oscillator 3)
• Oscillator feedback and drive control for increased signal saturation
• White noise source
• Keyboard pitch tracking on/off
• Switchable two/four-pole, discrete, resonant low-pass filter per voice
• Filter can be set to self-oscillation with the resonance control
• Bi-polar filter envelope value
• Speed modulation of the envelope
• Keyboard tracking: off, half, full
• 4-Stage (ADSR) envelope generator
• Speed modulation of the envelope
• LFO with 5 waveforms: sine, sawtooth, inverted sawtooth, square and random (sample and hold)
• LFO synchronisation
• Poly Mod
• Vintage knob recreates vintage synth characteristics by adding variations in component behaviour from voice to voice
• Aftertouch
• Clock
• Arpeggiator
• Polyphonic step sequencer with up to 64 steps and pauses
• Effects: stereo analogue distortion, two 24-bit / 48 kHz digital effects including reverb (room, hall, plate and spring), delay (full-bandwidth digital delay and emulated bucket brigade delay), chorus, flanger, phaser and ring modulator

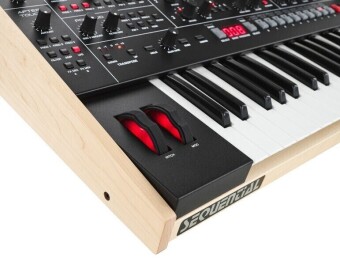

• Illuminated pitch and modulation wheels
• Transpose control for an 8-octave range
• Unison mode (monophonic) with a configurable number of voices, from one to all six voices, chord memory and key modes
• 500 User and 500 factory programmes in 10 banks of 100 programmes each
• Built-in power supply 100 - 240 volts at 50 to 60 Hz
• Side panels made of maple wood
• Dimensions (W x D x H): 807 x 323 117 mm
• Weight: 9.5 kg

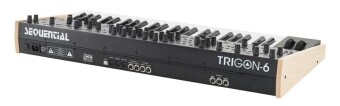

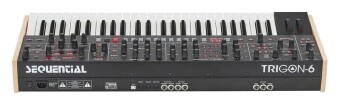

Connections:

• 2 Line outputs: 6.3 mm jack
• Stereo headphone output: 6.3 mm jack
• MIDI In/Out/Thru
• USB MIDI
• Filter cutoff input for expression pedal: 6.3 mm jack
• Expression pedal input for volume control: 6.3 mm jack
• Sustain footswitch input: 6.3 mm jack
• Input for sequencer start/stop footswitch
