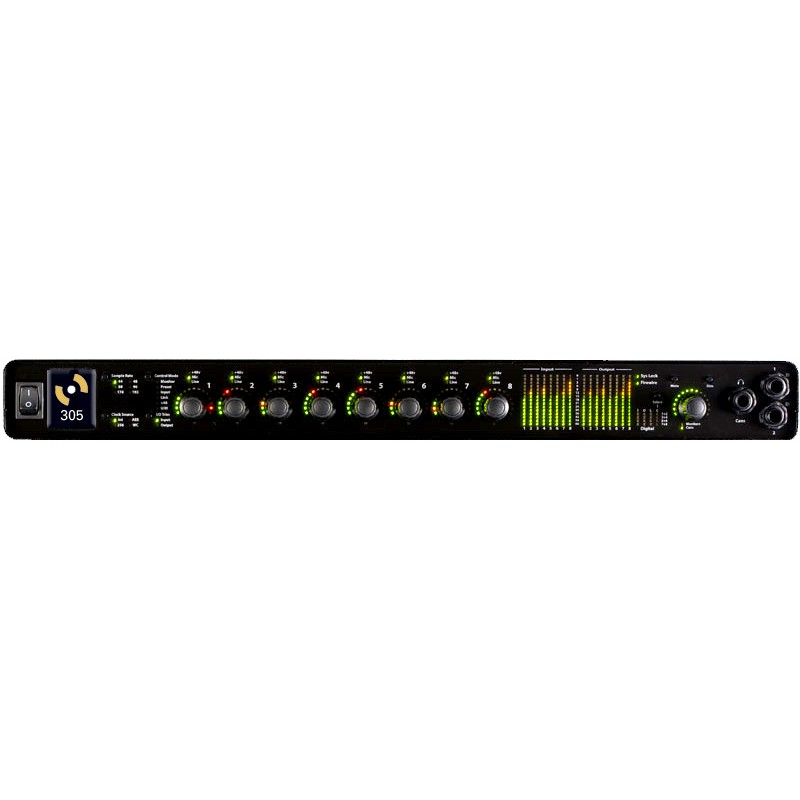

The Model 305 provides all the goodness of the Model 304 plus eight transformerless microphone preamplifiers with phantom power. As a custom build, we can fit a Model 305 with Jensen transformers, to interface with your vintage microphones or to provide the special sound that only inductors can provide.
DSP I/O Processor combines 8 channels of simultaneous AES/EBU I/O with 8 channels of line level I/O with stereo efx loop plus extensive processing and routing. Low latency headphone monitoring with 8 monitor sends as well. 8 channels of low noise mic preamps w/phantom power and optional Jensen transformer coupling. 192/24 capable & purpose–built with extended precision signal path, includes Sonic EQ™ along with 90 other plug–ins. Works with all Mac audio applications as Core Audio I/O. Rack mount kit included.
Mic Pre Specs:
- Model 305 Mic Pre Specs:
- Gain Range with Trim; -14 dB to +70 dB
- Harmonc Distortion @ 1 kHz (+9 dBu in @ 6 dB Gain); 0.0005%
- Intermodulation Distortion (1 kHz component, 19 kHz/20 kHz @ +8 dBu); -96 dBu
- Equivalent Input Noise, 20 Hz–20 kHz Flat @ 72 dB Gain, 150 Ω Source; -130.5 dBu
- Equivalent Input Noise, 20 Hz–20 kHz Flat @ 72 dB Gain, 0 Ω Source; -134.0 dBu
- Frequency Response; 18 Hz–20 kHz ± 0.1 dB
- Frequency Response; 3 Hz–100 kHz ± 3.0 dB
- Crosstalk @ 1 kHz, trim link engaged; -107 dB
