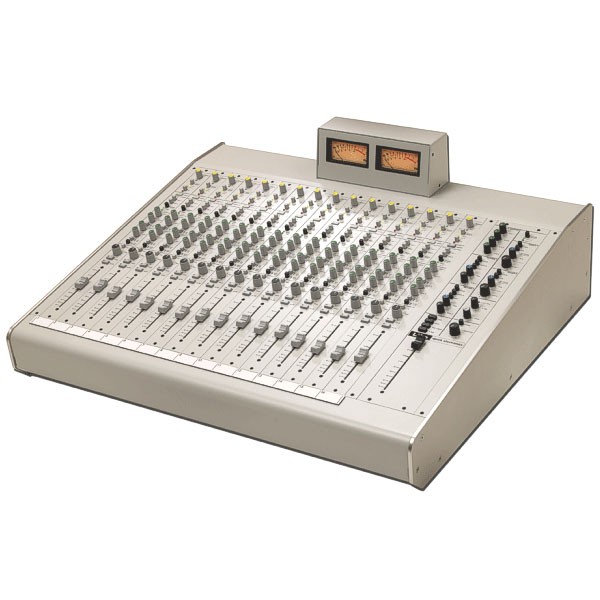

The Speck LiLo 16 Channel Transformerless Line Mixer is a high-definition desktop analog line mixer for routing and blending your external gear. Short for Line-in/Line-out, the LiLo was designed as a "quiet-transparent" platform that allows you to build a mixing system using the gear you already own.
Design Philosophy
One glance at the LiLo and you will realize that you are not looking at a conventional mixer. The first thing you will notice is the minimalist layout of the LiLo. This unpretentious design lacks mic preamps, equalizers, and is in short supply of knobs and switches. In their place, we bring you a well-designed 16 or 24 channel mixer with unmatched signal routing, generous amounts of headroom, and a transparent signal path.
The Lilo has been designed with the specific idea that you want to connect and mix your external gear and DAW without the limitations imposed by traditional recording consoles.
The Ins & Outs
All audio inputs, outputs, and inserts are fully balanced and available on XLR and TRS connectors.
Connect the LiLo to virtually any line level source: balanced, unbalanced, transformer, or transformer-less. The LiLo has high headroom that will handle balanced signals up to +28 dBu. Balanced transformers are standard on the main outputs and are optional on other outputs.
The Designer
The LiLo is the work of Vince Poulos, the designer and owner of Speck Electronics. Speck Electronics has been producing quality professional audio products for over 40 years. Founded in 1973, Speck Electronics has consistently provided innovations in audio products for all segments of professional recording and touring. Other products include the X.Sum rack mixer, the ASC and ASC-V equalizers, and MicPre 5.0 preamp.
Features:
- 16 channel with 32 inputs
- Fully modular construction
- All balanced inputs, outputs, and inserts.
- Each input channel has a selector for two line inputs, balanced inserts, 100 mm slider, pan, L-R assign and group assigns, 4 aux sends, mute, in-place solo, and a balanced direct out
- With a 100 mm stereo slider, masters, 2 track return, and two aux returns
- DAW return allows a workstation to be monitored at the LiLo mixer
- Optional transformers on group outputs
- Input channels have configuration switches under panel for user customization
