Measurements
- Width: 315 mm/12.4″
- Length: 800 mm/31.5″
- Thickness: 42 mm/1.65″
- Long Scale: 25.5”
- Short Scale: 25″
- String spread at nut: 35 mm/1.37″
- String spacing at bridge: 10.5 mm/.41″
- Neutral fret: 0
General
- Bolt-On Construction with new sculpted neck joint heel

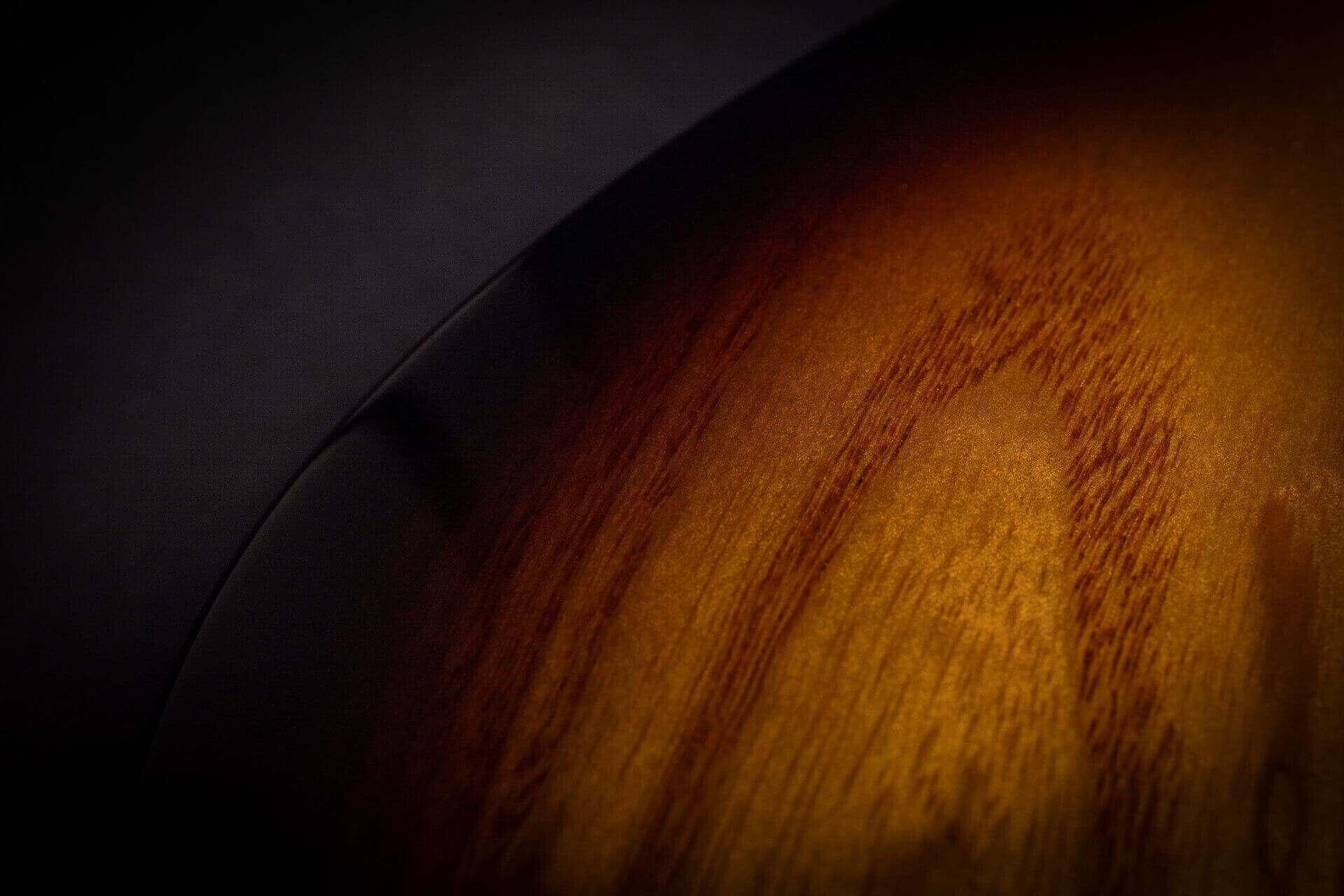

- Solid Swamp Ash Body with Arm and Torso Carves
- Available Finishes: Vintage Tobacco Burst Gloss
- Approximate Weight: 2.3kg / 5.5 lbs +/- 10%
- Manufactured in Indonesia
Hardware
- .strandberg* EGS Rev7 tremolo system & string locks
- Chrome hardware
- Original Luminlay‚Ñ¢ Green Side Dots
- Original Luminlay‚Ñ¢ Green Inlays
Neck & Frets
- Maple neck – Quartersawn, Carbon Fiber reinforced
- EndurNeck‚Ñ¢ Profile
- Maple Fretboard
- 20” Fretboard Radius
- 24 Frets
- Jescar 51100 Stainless Steel Fretwire (57110 for zero fret)
- D’Addario NYXL 10-46 strings
- Standard tuning EADGBE
Accessories
- Venture Gig Bag
- NX Multitool and Allen Key kit included
Sonic Profile

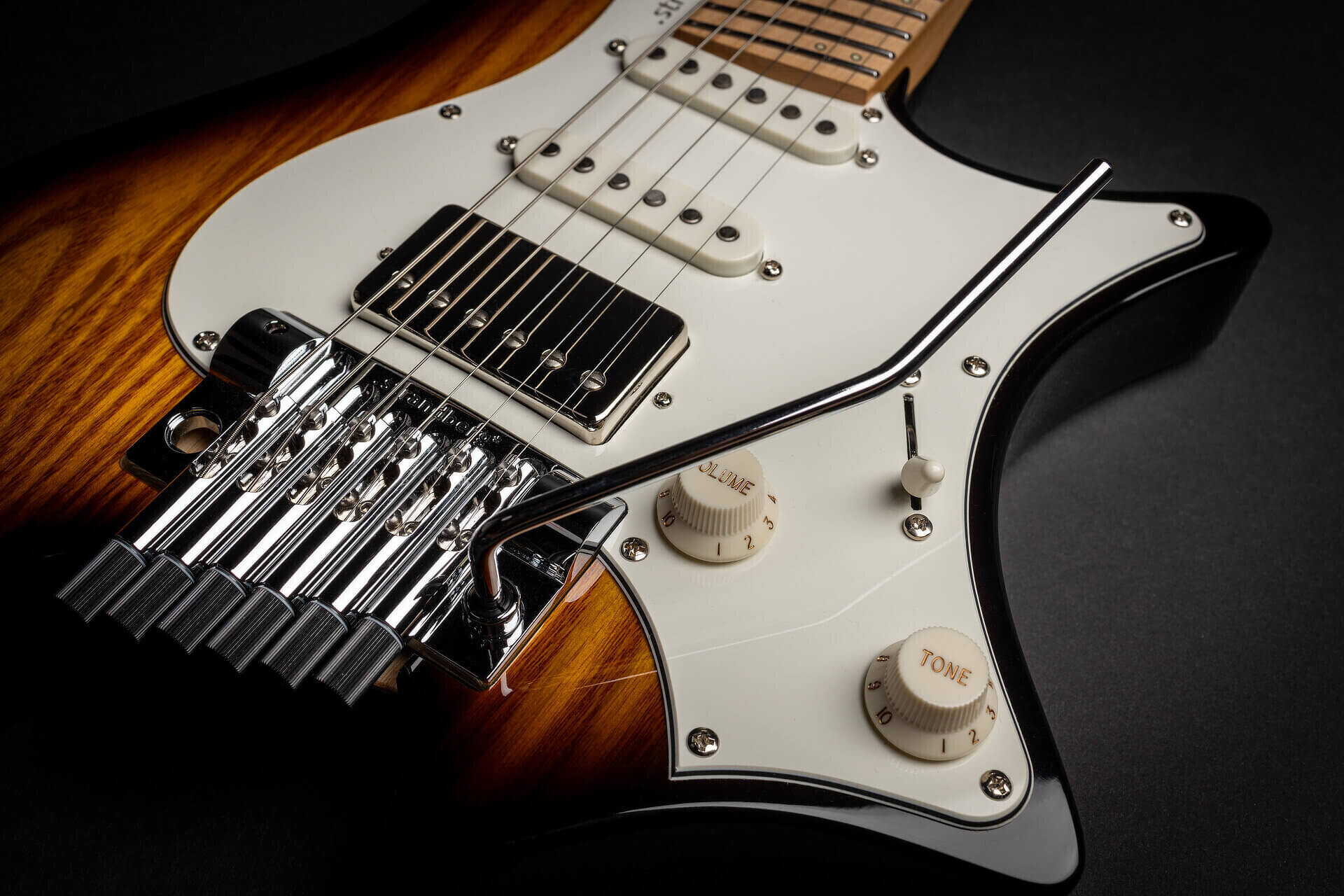

- H-S-S Pickup Configuration
- Neck: Suhr V60LP
- Middle: Suhr V60LP (reverse-wound, reverse-polarity)
- Bridge: Suhr Thornbucker+ Nickel Chrome
- 5-Way Pickup Selector
- Neck
- Neck + Middle
- Middle
- Middle + Bridge
- Bridge

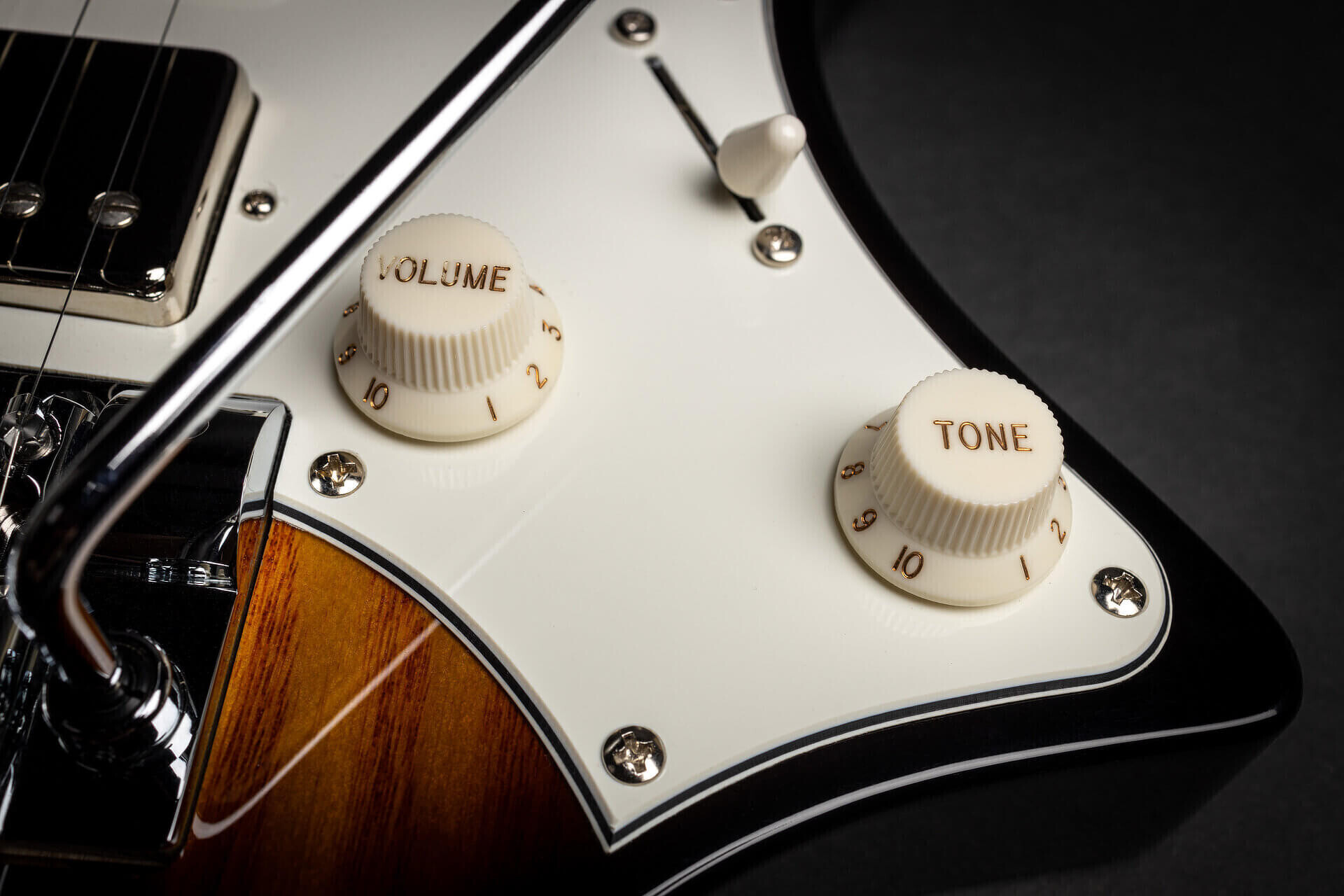

- Master Volume + Master Tone
