Двойной программный эквалайзер, пассивные фильтры с лучшей фазовой когерентностью,
чем активные схемы, и индуктивности, обеспечивающие богатое и гладкое гармоническое звучание.
Technical Specifications
Size and Weight
Size and Weight
- Height:
- 3.5 inches (8.89 cm)
- Width:
- 19 inches (48.26 cm)
- Depth:
- 10 inches (25.40 cm)
- Weight:
- 17 pounds (7.71 kg)
Power Configuration
- Internal AC Supply
- 35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable)
- Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC

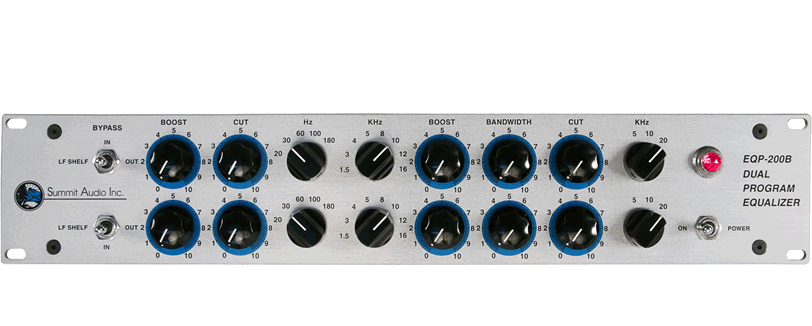

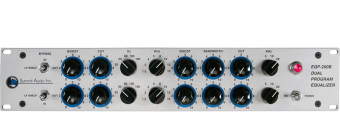

Selectable Frequencies
- Low Frequency Shelf / In / Out
- 3 position togle: 6 dB per octave shelving filter starting at 50 Hz, or standard engaged operation, or
bypass mode - Low Frequency Boost and Cut
- 20, 30,60, 100, 180 Hz frequencies.
- Mid-High Frequency Boost and Cut
- 1.5k, 3k, 5k, 8k, 10k, 12k, and 16k Hz frequencies.
- High Frequency Cut
- select at 5k, 10k and 20k Hz frequencies.

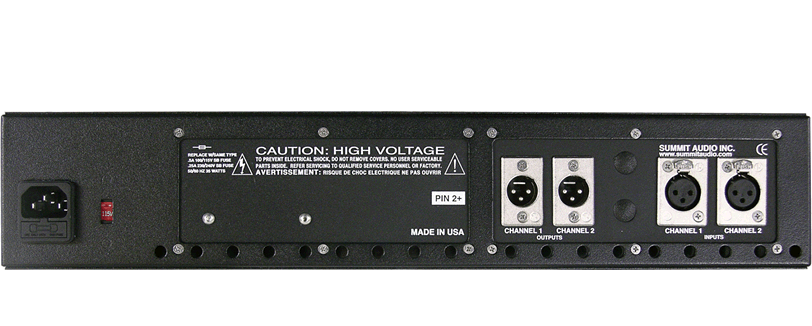

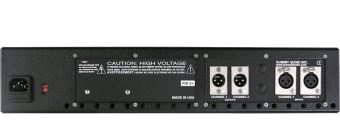

Connections
Size and Weight
- Inputs: +4 dB female XLR (2)
- Outputs: +4 dB male XLR (2)
Max level
- Max input level (XLR): +23dB
- Max output level (XLR): +23dB
- Max gain: +/-20dB
Operating Measurements
- Frequency response:
- Tube: 12Hz-45kHz -0.5dB
- Signal to noise ratio:
- Tube: 125dB average 20Hz-20kHz
- THD + Noise:
- Tube: 0.057% 12Hz-20kHz
- Vacuum tubes: three 12AX7A
Warranty
- 3 year limited warranty.
