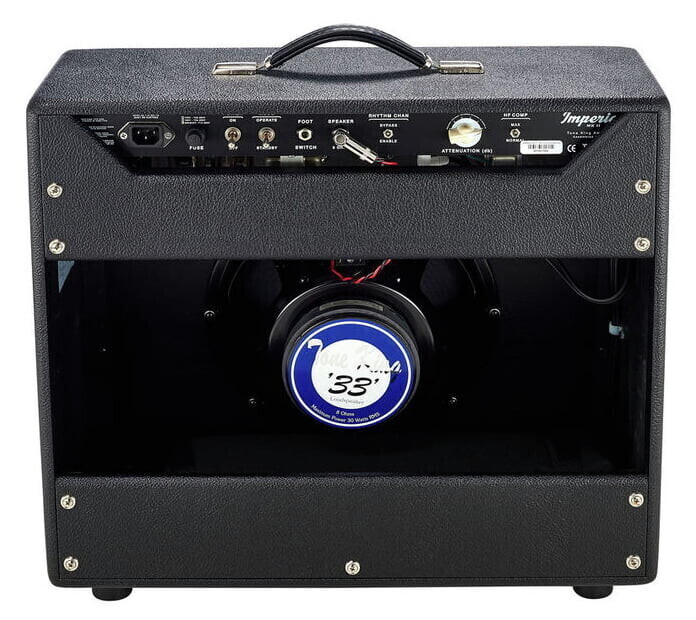

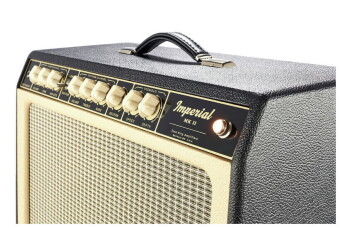

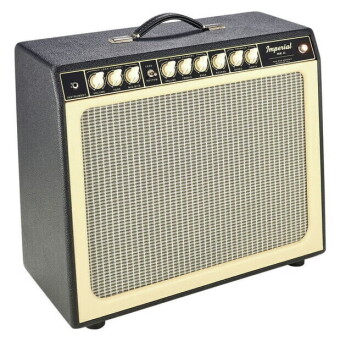

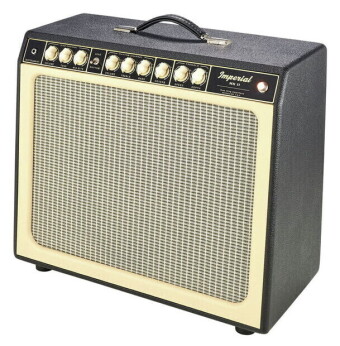

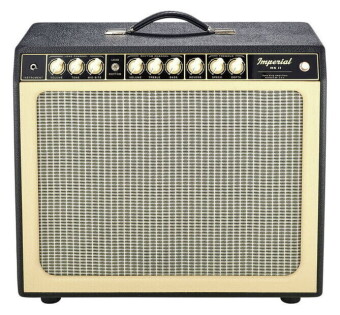

Tube Combo Amplifier for Electric Guitar
- Channels: 2
- Power: 20 W
- Components: 1x 12" Custom-designed 8 ohm ceramic magnet speaker made by Eminence
- Rectifier tube: 5AR4
- Reverb driver tube: 12AT7
- Reverb receiver tube: 12AX7A
- Preamp tubes: 3 x 12AX7A
- Power tubes: 2 x 6V6
- Integrated Ironman II compensated power attenuator (up to 36 dB)
- Attenuator features: Precision Tuned Reactive Load, Fletcher-Munson Volume Compensation Circuitry, Damping factor correction
- Housing design: Open

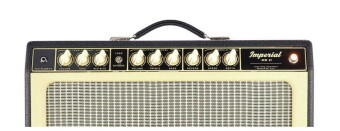

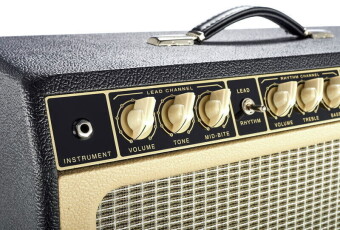

- Controls on the rhythm channel: Vol., Treb., Bass
- Lead channel: Vol., Tone, Mid-Bite
- Reverb - Tremolo Speed ??& Depth - Attenuator: Attenuation Level
- Channel selector (switchable via the front- or footswitch)

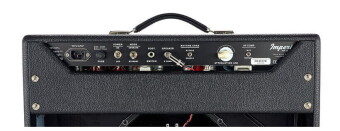

- Power on/off switch
- Standby switch
- Rhythm channel switch
- Attenuator bypass & HF compensation
- Effects: Spring reverb tubes
- Hi & Lo input: 2x 6.3 mm Jack
- Speaker output: 6.3 mm Jack
- Footswitch input: 6.3 mm Stereo jack
- Power supply (cold device plug)
- Dimensions (W x D x H): 572 x 489 x 267 mm
- Weight: 16.4 kg
- Colour: Black

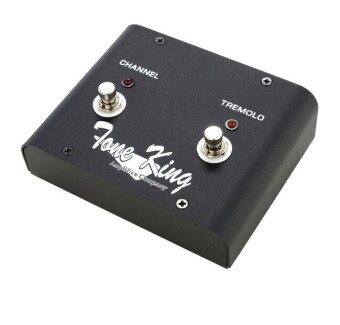

- Includes a 2-way footswitch (channel, tremolo)
- Made in USA
