The Torus Power TOT Series consists of three compact models that bring toroidal power conditioning to a new price point. Compact in size, affordable for most applications and packed with features, the TOT Series is an easy choice to improve performance of all audio and video systems.

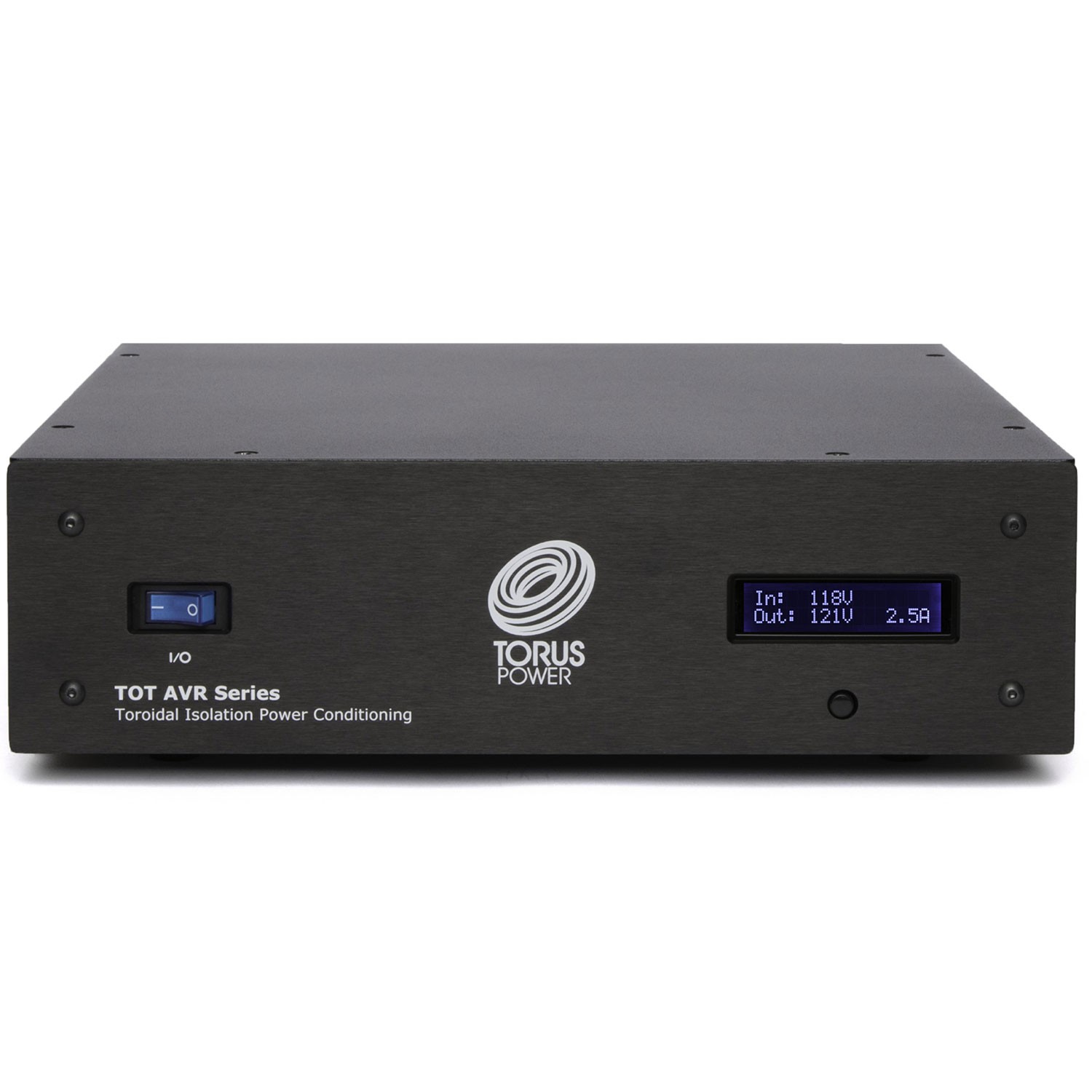

The TOT AVR, rated at 10 amps, provides automatic voltage regulation, thereby enhancing protection against voltage sags, brownouts and surges; plus Smart Ethernet connectivity and RS232 interface. Ideal for home theater receivers and 2-channel audio systems.
Torus TOT AVR will keep the output constant within the range of 115 Volts to 125 Volts, with an input voltage of 85 V to 135 V. Between 85 V to 90 V.
All TOT models feature a courtesy USB charger outlet. Options include a dress aluminum faceplate (Black or Silver) and a 19” rack mount adapter kit. TOT units include circuit protection through a replaceable varistor. Torus Power non-sacrificial Series Mode Surge Suppression (SMSS) is also available as a factory-installed option.
Features:
- Toroidal Isolation
- Noise Filtering
- High Instantaneous Current Capability
Specifications:
- Chassis: 19 inch rack mount
- Input: 120 VAC range from 85 – 135 VAC
- Output: 120 VAC ±5 V
- Input fuse: 10A
- Output current: 10A
- Power rating: 1200 VA
- Frequency: 60 Hz
- Number of outlets: 6
- Inlet type: IEC 15A
- Weight: 32.5 lb
- Dimension (W x D x H): 12.5 x 4 x 14.5 in
