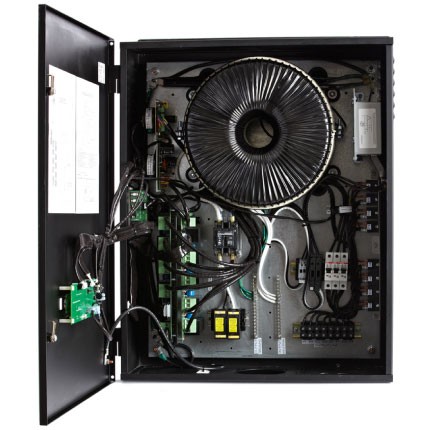

Torus Power Wall Mount (WM) Models provide great flexibility for custom installations, and new construction. Dedicated lines can be run to install the power outlets where needed. Select the appropriate power level – ratings of 45A, 60A, 75A and 100A are available.
Choose the WM model with the features needed; AVR2 models for individually controlled outlets, AVR models for basic monitoring, and RM models for straight power conditioning and protection. (Features are detailed separately.)
WM units are designed for 240 V input. Units can also be supplied with 208 V inputs for 3-phase systems. WM units are provided with 20A output breakers. Alternatively, WM units can be supplied with terminal blocks to enable direct feed to subpanel.
International Models of various voltages and frequencies can also be supplied.
All WM Series models are available with a Transient Voltage Surge Suppression (TVSS) device built into its signal path. The UL certified panel TVSS responds in under 5 nano-seconds and manages surges up to 80,000 Amps. The TVSS also offers additional noise filtration of EMI and RFI (40 dB typical).
All WM Series models are available with a Transient Voltage Surge Suppression (TVSS) device built into its signal path. The UL certified panel TVSS responds in under 5 nano-seconds and manages surges up to 80,000 Amps. The TVSS also offers additional noise filtration of EMI and RFI (40 dB typical).
Features:
- Toroidal Isolation
- Noise Filtering
- High Instantaneous Current Capability
- Series Mode Surge Suppression
- Automatic Voltage Regulation
- Smart Ethernet
Specifications:
- Chassis: Wall mount
- Input: 240 VAC
- Output: 120 VAC ±5 V
- Input current limiting (fuses): 2 x 30A
- Output current: 60A
- Power VA: 7200
- Frequency: 60 Hz
- Output breakers: 3 x 20A
- Weight: 202 lb
- Dimension (W x D x H): 32.5 x 24.7 x 10.3 in
