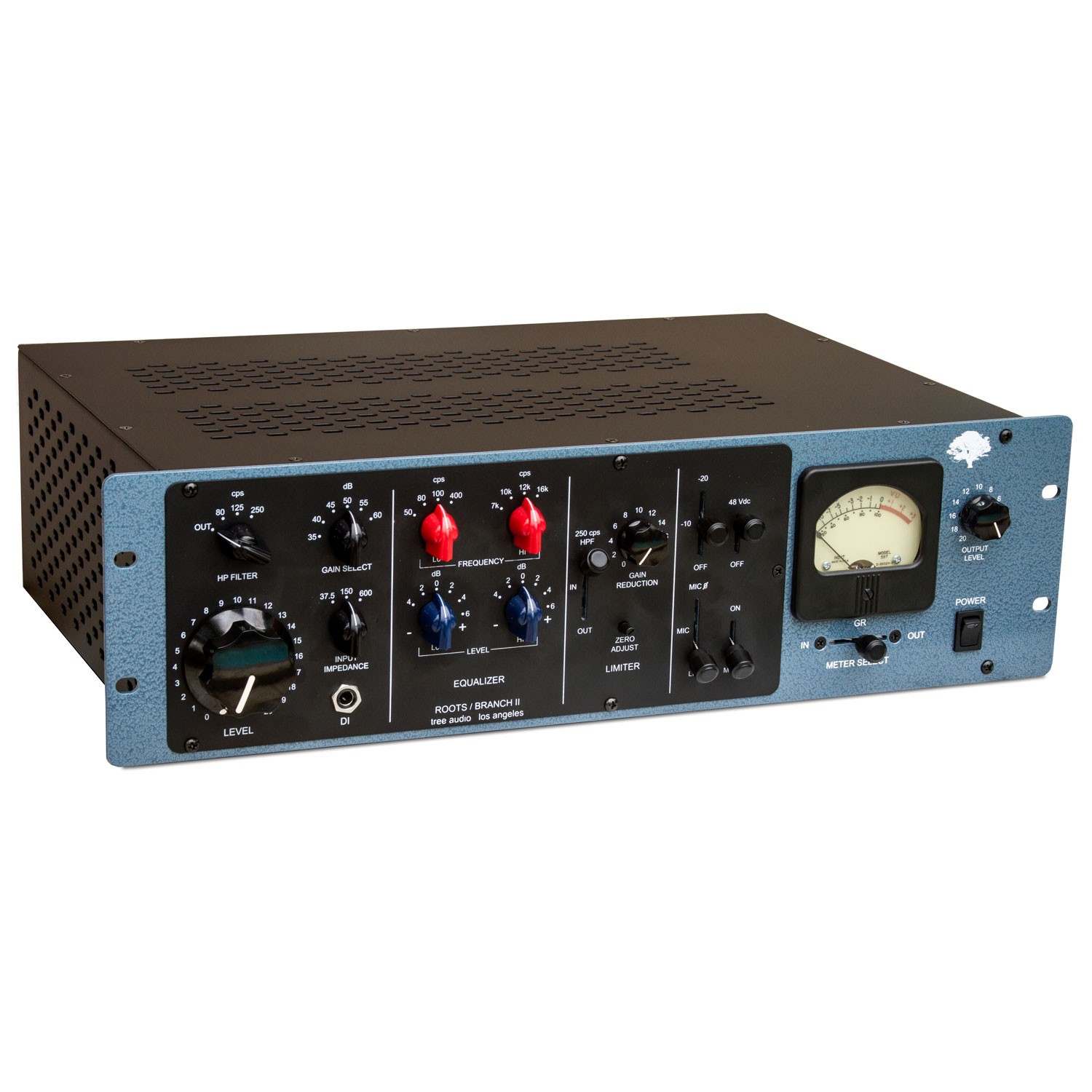

Tree Audio's Branch may be all you need! It's a stand alone channel strip version of the Roots console, featuring all of the same controls as The Roots, as well as an internal regulated tube power supply. The Branches have been flying out the door. So if all you need is a single channel or two, this is it. It's simple to operate and has an amazing sound.
New Features!
- 80Hz, 125Hz, 250Hz Hi Pass Filter
- Variable Gain Select
- Output Level pot
- Input Impedance Select – 37.5, 150, 600 Ohms
All Tube Channel Strip:
- Same high quality sound and circuitry as the Roots console
- Mic Pre/line input/direct input (instrument in)
- EQ and limiter
Features On Front Panel (left to right):
- Direct input/big knob level pot/EQ to level, 50Hz, 100Hz, 400Hz
- EQ hi level, 7k, 10k, 12k, 16k/limiter switch (out, in HPF) 250Hz
- Gain reduction level (limiter)
- Line, mic, mic reverse phase switch/pad switch (off, -10, -20dB)
- Mute switch/+48Vdc phantom power switch/meter select (input, gain reduction, output)
- Custom wound uncut and output transformers
- Complete unit comes in 3-rack space box
- Includes vacuum tube and linear regulated power supply
