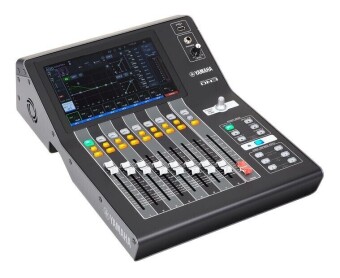

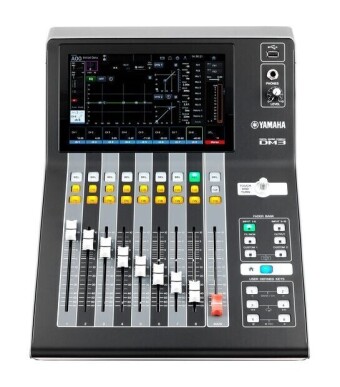

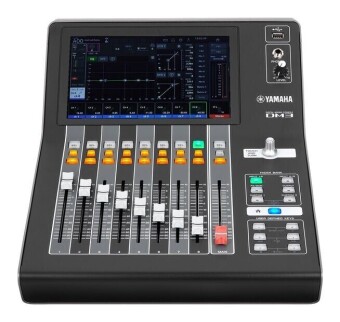

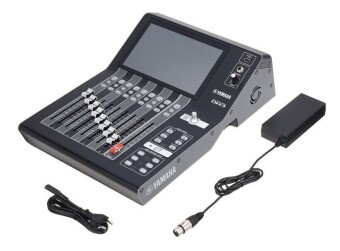

16-Channel Digital Mixer for Studio, Stream and Live Applications

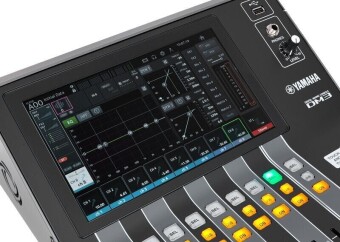

- 9" Multi touchscreen

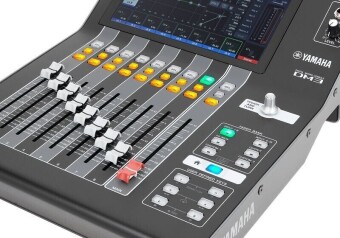

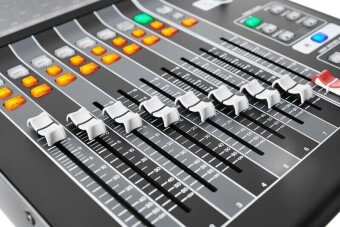

- 9 Motorised faders
- "Turn & Touch" controls
- 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
- 16 Mono inputs + 1 Stereo + 2 FX return
- 8 Outputs
- Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
- DAW Remote Feature (HUI)
- OSC support for installations
- Editor app available for tablet (tablet not included)

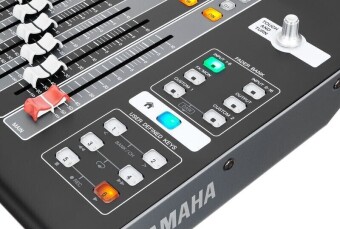

- 6 Freely assignable buttons
- 2 x 2 Channel recording/playback via USB port
- 18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus
- Dimensions (W x H x D): 320 x 140 x 455 mm
- Weight: 6.5 kg
- Includes Steinberg Cubase AI and VST Rack Elements

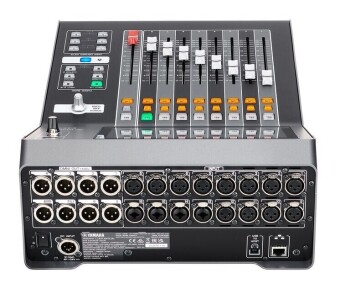

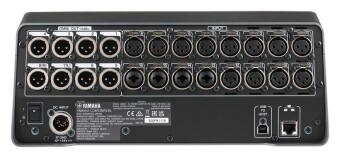

Connections
- 16 Mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
- 8 Line outputs: XLR
- Stereo headphone output: 6.3 mm jack
- USB to Host
- USB to Device
- Ethernet RJ45
